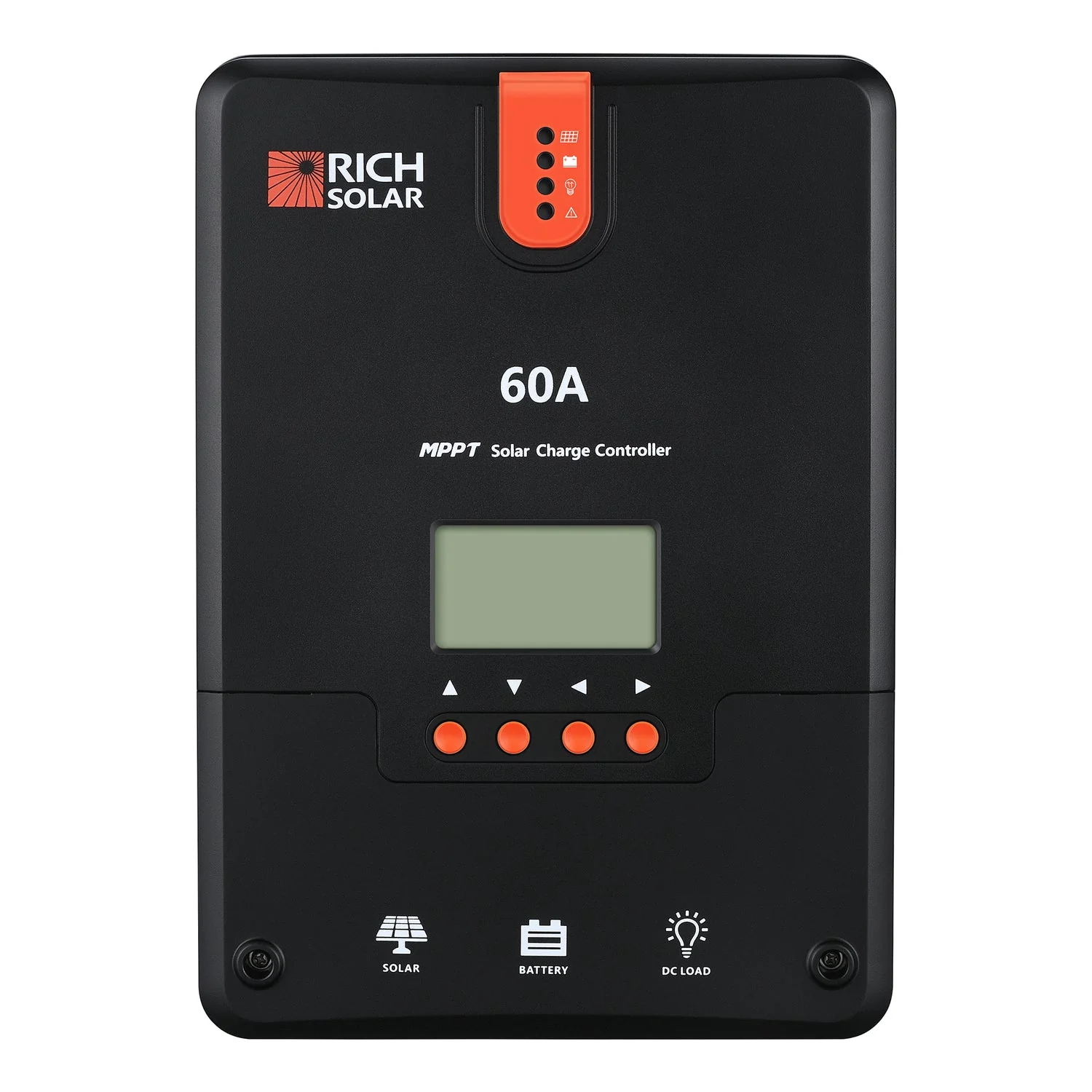

Rich Solar 60A MPPT solar charge controller
Rich Solar 60A MPPT solar charge controller
Rich Solar 60A is a universal solar charge controller that can automatically detect 12V/24V/36V/48V system voltages deploying innovative MPPT algorithm to achieve a high tracking efficiency of 99% and peak conversion efficiency of 98%.
Able to handle diverse load control, this 60A MPPT solar charge controller works with Sealed, Gel, Flooded and Lithium deep cycle batteries and with a diverse load control can charge even over-discharged lithium batteries.
A large LCD screen with intuitive LED indicators gives real-time operating information, customizable parameters and other error codes. While the die-cast aluminum construction allows efficient heat dissipation, the charge controller's electronic protection keeps your energy system protected against overcharge, over discharge, reverse polarity, overload, short circuiting and reverse current.
Specifications:
Rated Battery Current: 60A
Rated Load Current: 20A
Max Solar Input Voltage: 150V
Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop: = 0.26V
Discharge Circuit Voltage Drop: = 0.15V
Operating Temperature: -31 Ā°F to 113 Ā°F
Max Terminal Size: 4AWG
Overall Dimensions: 11.2 x 8.1 x 4.0 in
Net Weight: 7.9 lb
What's in the Box:
1 x 60A MPPT Solar Charge Controller
1 x User ManualĀ
Original: $288.99
-70%$288.99
$86.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Rich Solar 60A MPPT solar charge controller
Rich Solar 60A is a universal solar charge controller that can automatically detect 12V/24V/36V/48V system voltages deploying innovative MPPT algorithm to achieve a high tracking efficiency of 99% and peak conversion efficiency of 98%.
Able to handle diverse load control, this 60A MPPT solar charge controller works with Sealed, Gel, Flooded and Lithium deep cycle batteries and with a diverse load control can charge even over-discharged lithium batteries.
A large LCD screen with intuitive LED indicators gives real-time operating information, customizable parameters and other error codes. While the die-cast aluminum construction allows efficient heat dissipation, the charge controller's electronic protection keeps your energy system protected against overcharge, over discharge, reverse polarity, overload, short circuiting and reverse current.
Specifications:
Rated Battery Current: 60A
Rated Load Current: 20A
Max Solar Input Voltage: 150V
Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop: = 0.26V
Discharge Circuit Voltage Drop: = 0.15V
Operating Temperature: -31 Ā°F to 113 Ā°F
Max Terminal Size: 4AWG
Overall Dimensions: 11.2 x 8.1 x 4.0 in
Net Weight: 7.9 lb
What's in the Box:
1 x 60A MPPT Solar Charge Controller
1 x User ManualĀ
