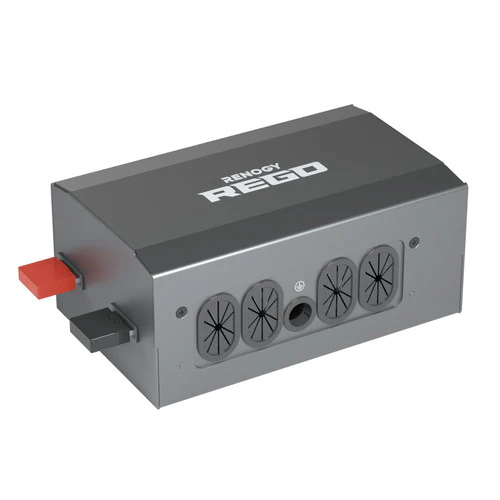

Renogy REGO 500A Combiner Box

Renogy REGO 500A Combiner Box

Renogy REGO 500A Combiner Box is a space-efficient cable hub that consolidates and streamlines all electrical connections in one secured location for reliable power distribution.

Designed to accommodate 4/0 thick AWG cables, REGO combiner box is ideal for high-power electrical systems as the box effectively prevents ring terminal slacking, eliminating short-circuits when your RV ventures into bumpy terrains.

Expedite and resolve electrical issues like a pro thanks to the electrical wiring housed in the well-organized box. REGO combiner box elevates your RV's wiring aesthetics with the perfect blend of functionality and style.

Highlights:

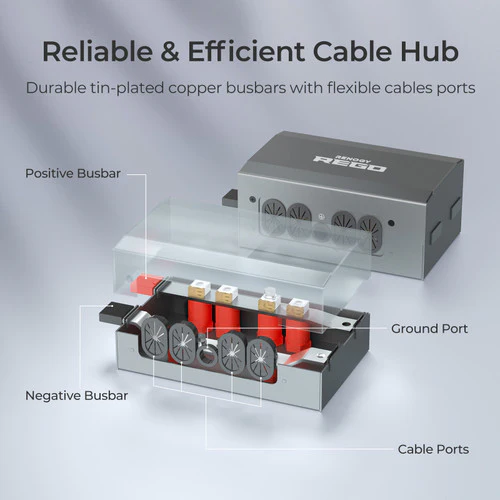

• Tin-plated copper busbars for robust, long-term performance
• Simple installation and maintenance
• Lightweight box with ample internal space
• Durable enclosure to secure electrical connections

Specifications:

Voltage range: 9 - 60Vdc

Rated Current: 500A

Connector: M8 Busbar

Enclosure material: Sheet metal

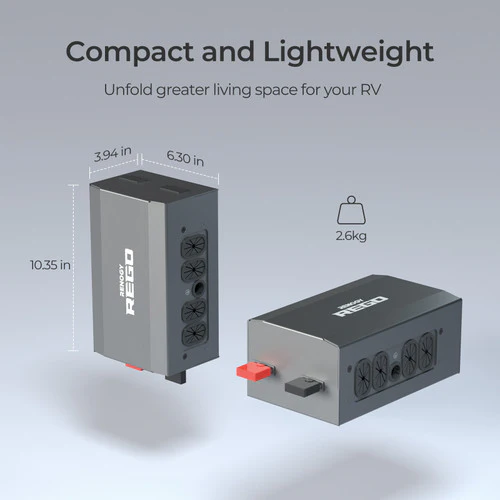

Enclosure dimensions: 10.35 x 6.30 x 3.94 in

Unit weight: 5.73lbs

Busbar material: Tinned copper

Busbar dimensions: 4 x 30 mm

Recommended terminal torque: 70.8 in·lbs / 8 N·m

Operating temperature range: '-4°F to 140°F / -20°C to 60°C

Storage temperature range: '-40°F to 176°F / -40°C to 80°C

Humidity: 0-99% RH (non-condensing)

Protection class: IP22

Material and workmanship warranty: 1 Year

RoHS compliant: Yes

What's in the Box:

1 x REGO 500A Combiner Box

1 x User Manual
