Renogy RCM-BT2 - Renogy BT-2 Bluetooth Module
Renogy RCM-BT2 - Renogy BT-2 Bluetooth Module
Renogy's new generation Bluetooth Module, the BT2 is one-stop-solution module to make your green energy solution a smarter set up. RCM-BT2 is all you need to monitor, control and manipulate all your devices with the Renogy DC Home smart phone app.
PRECISE CONTROL OVER DEVICES

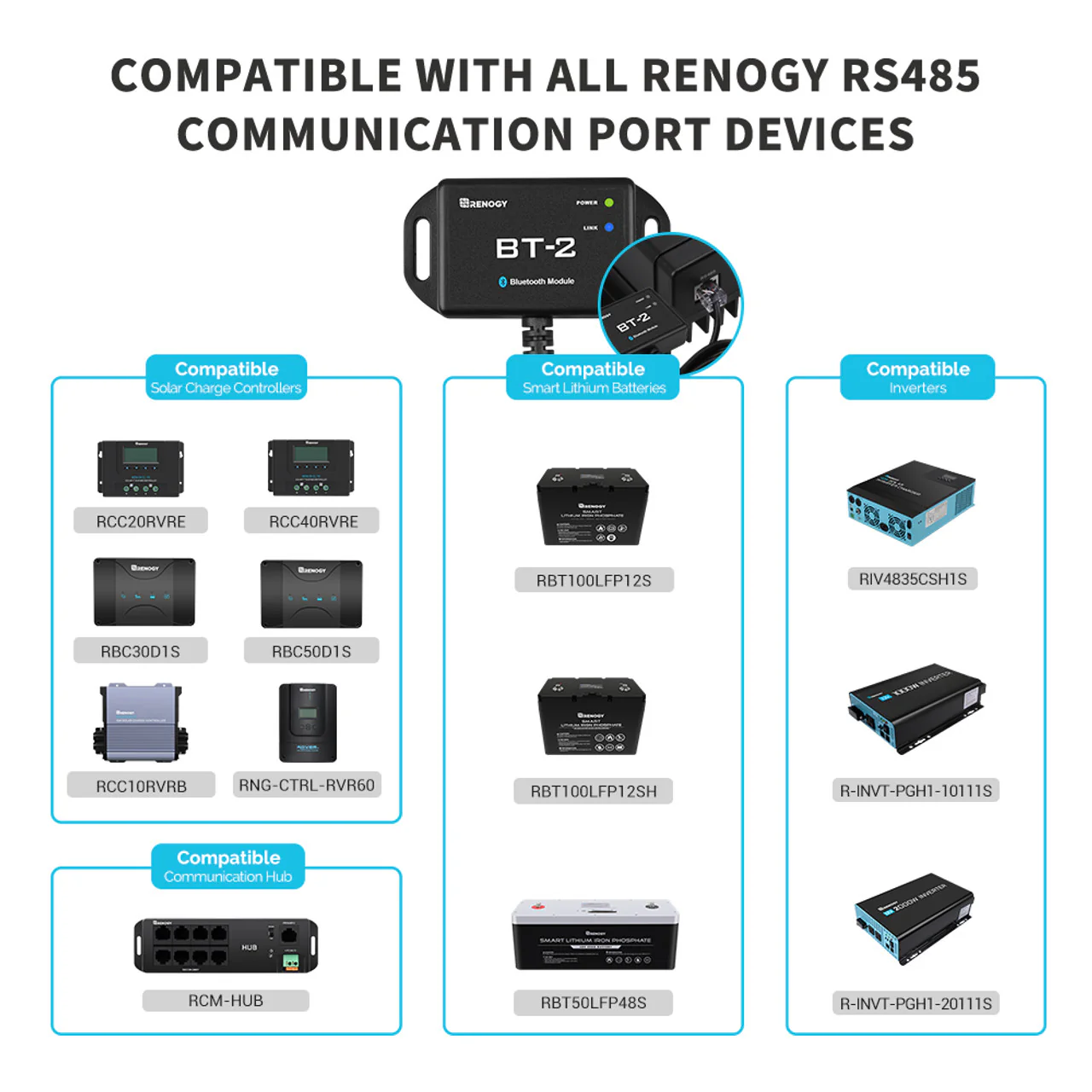

From your Rover Elite MPPT solar charge controller, smart lithium batteries to pure sine wave converter and dual DC-DC MPPT battery chargers, RCM BT2 is compatible with Renogy RS485 communication port that gives precise control over your energy solutions.
REAL TIME INSIGHT
Simply connect the BT2 to the component's communication port and once the indicator turns on after syncing with your device, you get real-time and past data via BT 2 Bluetooth Module and Renogy DC Home App. Renogy's embedded Bluetooth 4.2 and BLE technology ensures fast and uninterrupted communication.
USER FRIENDLY
The Bluetooth Module powered by solar energy allows a signal range of up to 82 ft. From monitoring to changing parameters according to the data, our user-friendly Renogy DC Home App amps up your off-grid power system with real-time access to configure, monitor, update and diagnose all your Renogy products from your smart phone.
Specifications:
Communication Protocol: RS485
Compatible Inverter: R-INVT-PGH1-20111S RIV4835CSH1S
Port Type: RJ45
Compatible Smart Lithium Batteries: RBT100LFP12S RBT100LFP12SH RBT50LFP48S BT100LFP12-BT RBT200LFP12-BT
Input Voltage: 5V or 12V
Compatible Battery Charger: RBC30D1S RBC50D1S
Protection Grade: IP54
Compatible App: Renogy DC Home App available in both the App Store and Google Play
Standby Power Consumption: 0.04W
Operating Power Consumption: 0.05W
Communication Range: ā¤82ft (25m)
Serial Baud Rate: Fixed Baud Rate 9600bps

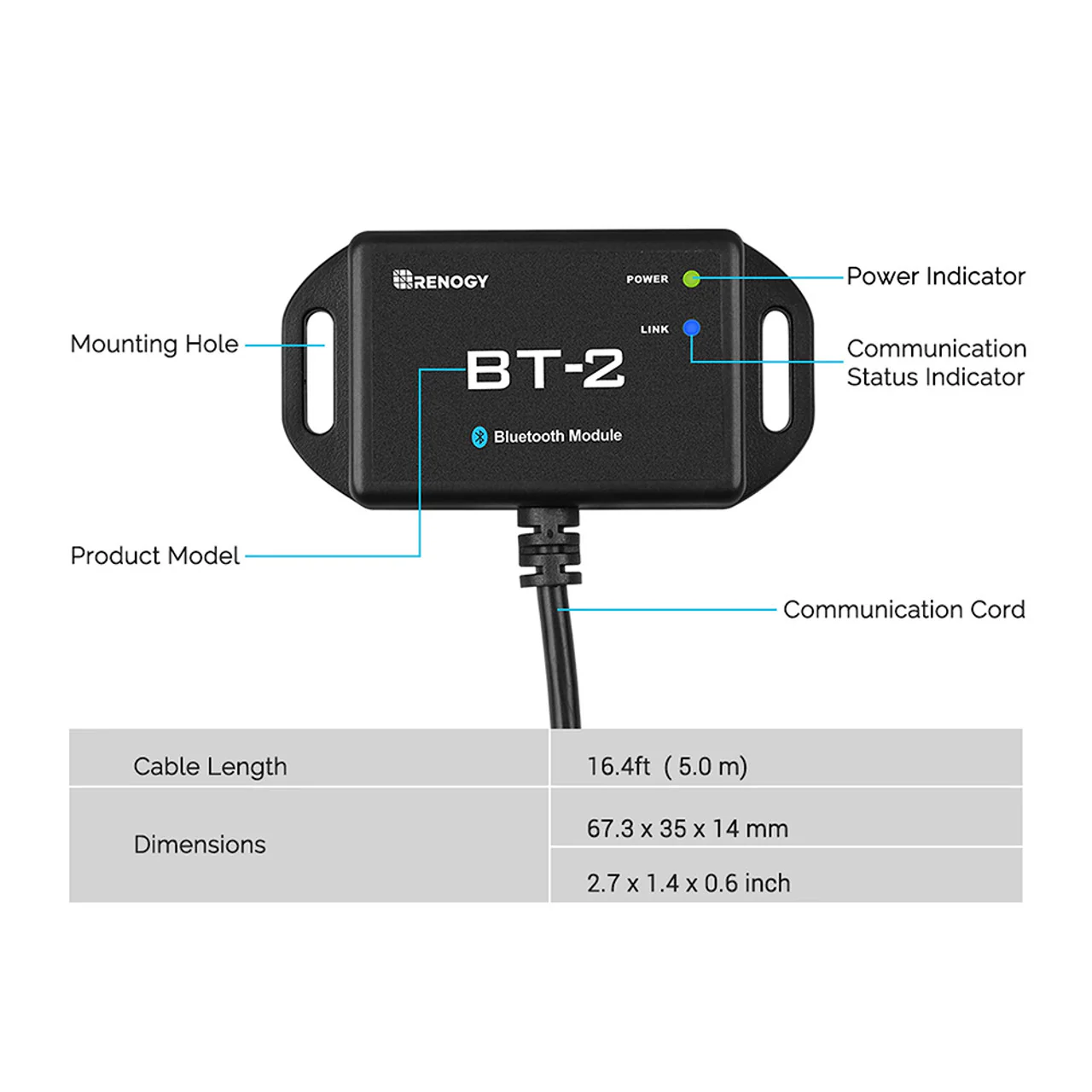

Cable Length: 16.4 ft
Dimensions: 2.65 X 1.38 X 0.55 in
Weight: 4.58oz
Operation Temperature: -4Ā°F to 185Ā°F ('-20ā~85ā)
Warranty: 1 Year
What's in the Box:
1 x RCM-BT2 - Renogy BT-2 Bluetooth Module
1 x User Manual
