REGO 12V/24V 30A DC-DC Battery Charger

REGO 12V/24V 30A DC-DC Battery Charger

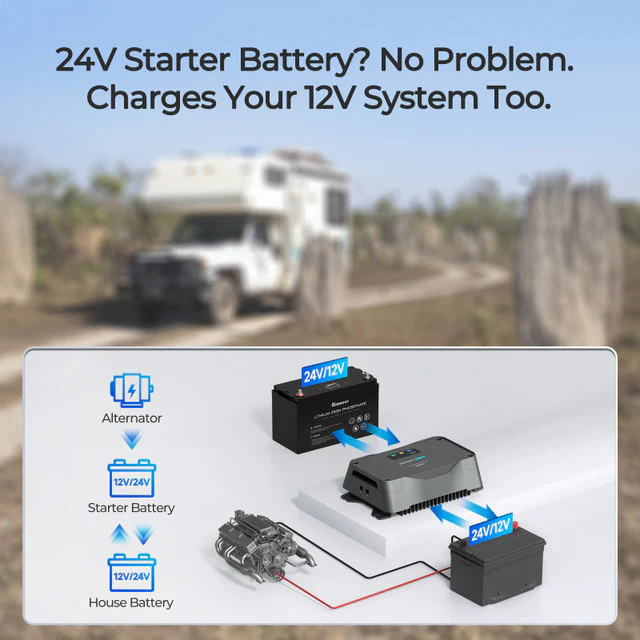

The REGO 12V/24V 30A DC-DC Battery Charger is a smart, rugged, and highly versatile power solution built for modern off-grid adventures. Engineered to work seamlessly with both 12V and 24V systems, it automatically detects the input voltage and adapts without manual configuration, making it perfect for RVs, boats, expedition vehicles, and overlanding setups. What sets this charger apart is its intelligent bidirectional charging, allowing it to not only charge your auxiliary battery from the starter while driving, but also reverse the flow when needed to top off the starter battery, ensuring both stay optimally charged.

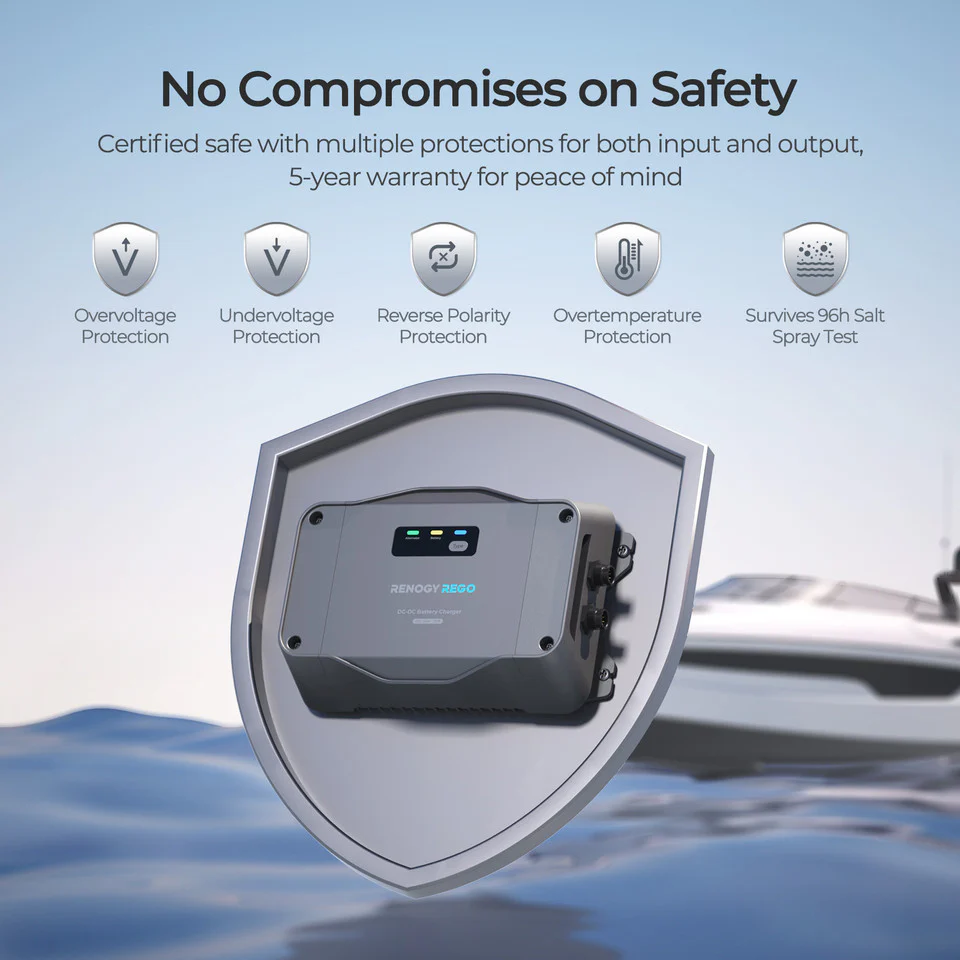

With built-in Bluetooth connectivity, you can fine-tune charging parameters, monitor performance, and configure battery types, AGM, Gel, Flooded, Lithium, or custom through the Renogy DC Home app, while advanced RS485 and CAN (RV-C) protocols provide additional interface options. Its robust safety suite includes protection from reverse polarity, overheating, short circuits, and over/under-voltage scenarios, all housed within a compact, IP43-rated enclosure designed to withstand harsh weather and extreme temperatures ranging from -31°F to 176°F.

Capable of delivering a high-efficiency 30A output with over 94% conversion efficiency, it also supports jump-starting a depleted starter battery from the auxiliary bank, making it a reliable ally in emergencies. With natural cooling via an integrated heatsink, support for up to 450W power delivery, and a 5-year manufacturer warranty, the REGO 30A charger is a future-forward essential for safe, intelligent, and worry-free dual-battery charging on the go.

Highlights:

•    Auto 12V/24V switching for versatile vehicle power systems.
•    Smart bidirectional charging means no flat batteries.
•    Bluetooth & CAN Control provide real-time status updates, anywhere.
•    14-layer protection offers reliability and efficiency.
•    Globally certified with 5-year warranty for peace of mind.
•    Wide operating temperature.
•    Fits tight spaces.

SPECIFICATIONS:

General Data
Grounding: Common Negative
Communication: RS485; RENOGY CAN
Operating Temperature: Operating Temperature Range: -31°F to 176°F /-35°C to 80°C; Recommended Operating Temperature: -31°F to 149°F/-35°C to 65°C
Storage Temperature: -40°F to 176°F /-40°C to 80°C
Humidity: 0%~95% RH
Cooling: Heat Sink
Enclosure Rating: IP43

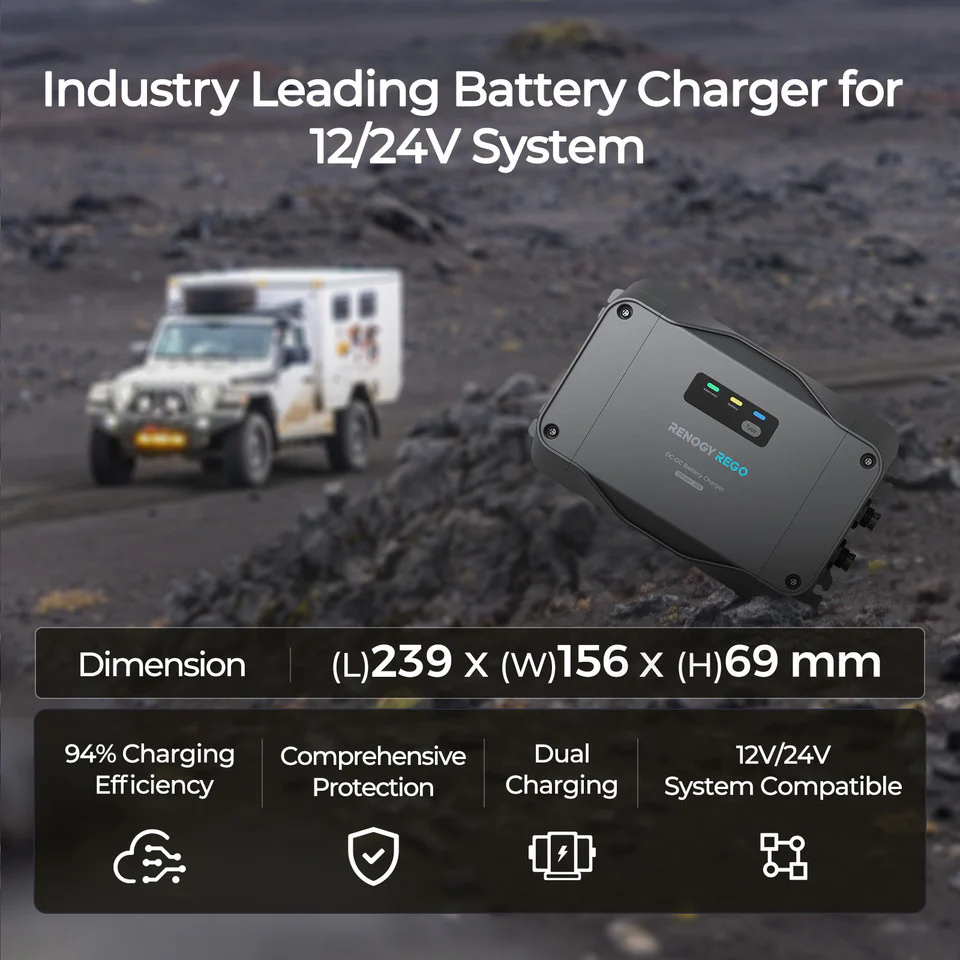

Dimensions (L x W x H): 239 x 156 x 69 mm / 9.41 x 6.15 x 2.74 inch
Weight: 2.0 kg /4.41 lb
Regulatory and Safety Specifications: FCC Path 15, Class B, CE, RoHS, SAA, E-amrk

Charger Data
System Voltage: 12V/24V-12V/24V
Output Voltage: 9-32V DC
Alternator Input: Traditional Alternator (default 12V): 13.2-16.0VDC; Adjustable Input (default 12V): 12.0-15.0 VDC (DC Home)
Maximum Output Current Rating: 30A
Output Power: 450W
Battery Types: AGM, Gel, Flooded, Lithium-iron Phosphate
Charging Efficiency: ≥94%
Idle Power Consumption: ＜50 mA
Warranty Information
Accessories: 5-year material warranty

WHAT’S IN THE BOX:

1 × Battery Charger

1 x Quick Guide

1 x Battery Temperature Sensor (2m)

4 x Mounting Screws (ST4*16 mm)
