Pioneer® Diamante Ultra 18,000 BTU 22 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 230V with 16 Ft. Kit
Overview
Summary
- Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 18,000 BTU/H with 22 SEER2 / 13 EER2 efficiency
- Heating capacity: 18,000 BTU/H with 9.0 HSPF2 / 3.5 COP efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- Wireless Internet Access Included (Via Free Smartphone App)
- AHRI Estimated Annual Operating Costs:
- Cooling: $111.00
- Heating: $381.00

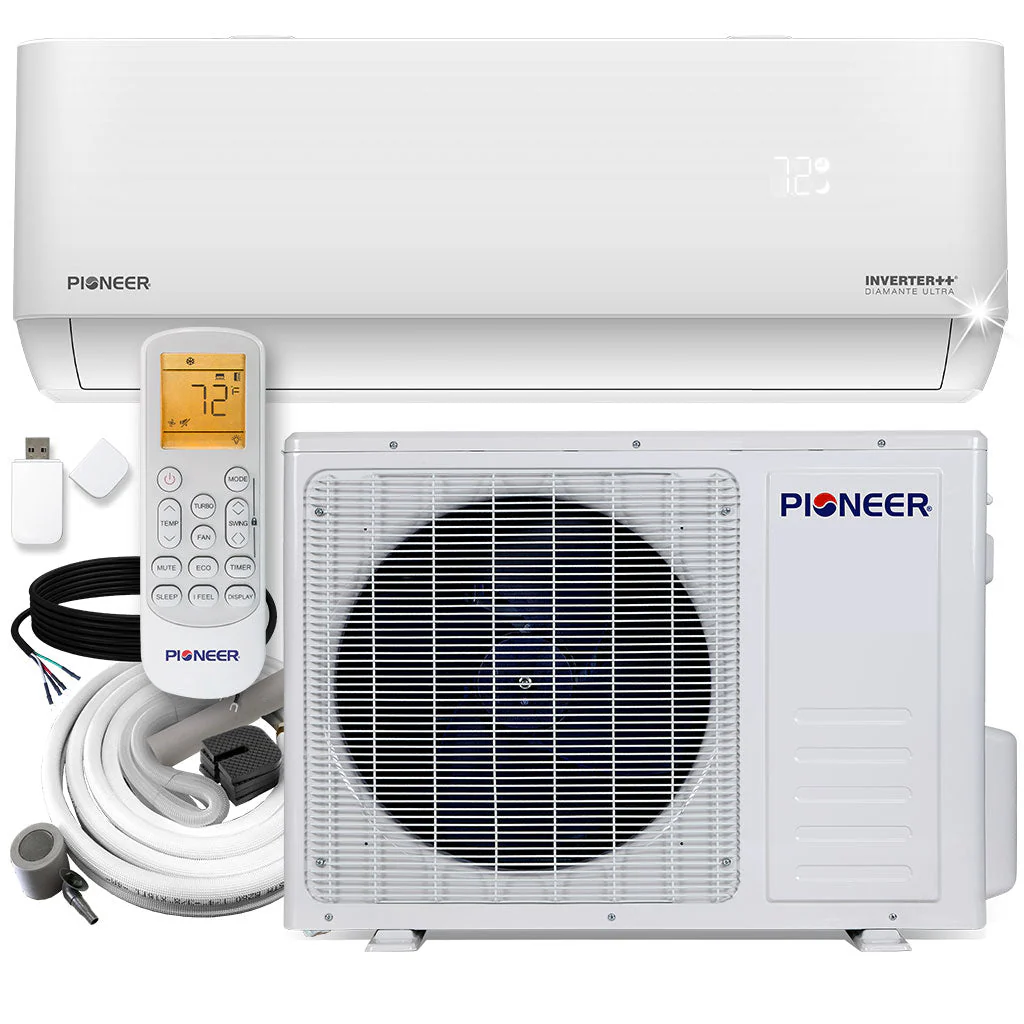

What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with wall holder and batteries)
- Internet Control Module
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
- 5 years Warranty for Parts (Extendable to up to 7 years)
- 5 years for Compressor (Extendable to up to 10 years)
Features
[[FEATURES]]Technical Information
Performance Data
- Power Supply: 230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h (1.5 Ton)
- Rated Power Input (Cooling): 1350W
- Cooling SEER2: 22 BTU/W.h
- Cooling EER2: 13 BTU/W.h
- Heating Rated Capacity: 18,000 BTU/h (1.5 Ton)
- Rated Power Input (Heating): 1310W
- Heating HSPF2: 9 BTU/W.h
- Heating C.O.P.: 3.5 W/W
- Refrigerant Type: R410A
- Recommended Application Area: 400~650 Sq.Ft
Indoor Unit Data
- Part Number: WT018GLFI22HLD
- Air Flow (Hi/Med/Lo): 735 / 618 / 529 CFM
- Sound Level (Hi/Med/Lo/Mute): 45/40/35/31 dB(A)
- Net Dimensions (WDH): 43-3/8 x 8-3/4 x 13-1/8 Inches
- Carton Dimensions (WDH): 45-7/8 x 11-5/8 x 16 Inches
- Net / Gross Weight: 30.9 / 35.3 Lbs
Outdoor Unit Data
- Part Number: YN018GLFI22RPD
- Sound Level: 52 dB(A)
- Net Dimensions (WDH): 33-1/4 x 15 x 27-1/2 Inches
- Carton Dimensions (WDH): 37-3/4 x 17 x 29-1/2 Inches
- Net / Gross Weight: 84.9 / 93.7 lbs
- Electrical Circuit Size: 20A (double-pole)
Manuals & Documents
$422.40
Original: $1,408.00
-70%Pioneer® Diamante Ultra 18,000 BTU 22 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 230V with 16 Ft. Kit—
$1,408.00
$422.40Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Summary
- Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 18,000 BTU/H with 22 SEER2 / 13 EER2 efficiency
- Heating capacity: 18,000 BTU/H with 9.0 HSPF2 / 3.5 COP efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- Wireless Internet Access Included (Via Free Smartphone App)
- AHRI Estimated Annual Operating Costs:
- Cooling: $111.00
- Heating: $381.00
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with wall holder and batteries)
- Internet Control Module
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
- 5 years Warranty for Parts (Extendable to up to 7 years)
- 5 years for Compressor (Extendable to up to 10 years)
Features
[[FEATURES]]Technical Information
Performance Data
- Power Supply: 230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h (1.5 Ton)
- Rated Power Input (Cooling): 1350W
- Cooling SEER2: 22 BTU/W.h
- Cooling EER2: 13 BTU/W.h
- Heating Rated Capacity: 18,000 BTU/h (1.5 Ton)
- Rated Power Input (Heating): 1310W
- Heating HSPF2: 9 BTU/W.h
- Heating C.O.P.: 3.5 W/W
- Refrigerant Type: R410A
- Recommended Application Area: 400~650 Sq.Ft
Indoor Unit Data
- Part Number: WT018GLFI22HLD
- Air Flow (Hi/Med/Lo): 735 / 618 / 529 CFM
- Sound Level (Hi/Med/Lo/Mute): 45/40/35/31 dB(A)
- Net Dimensions (WDH): 43-3/8 x 8-3/4 x 13-1/8 Inches
- Carton Dimensions (WDH): 45-7/8 x 11-5/8 x 16 Inches
- Net / Gross Weight: 30.9 / 35.3 Lbs
Outdoor Unit Data
- Part Number: YN018GLFI22RPD
- Sound Level: 52 dB(A)
- Net Dimensions (WDH): 33-1/4 x 15 x 27-1/2 Inches
- Carton Dimensions (WDH): 37-3/4 x 17 x 29-1/2 Inches
- Net / Gross Weight: 84.9 / 93.7 lbs
- Electrical Circuit Size: 20A (double-pole)
