Pioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit
Overview
Summary
- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 24,000 BTU/H with 19 SEER2 / 10.0 EER2 efficiency
- Heating capacity: 24,400 BTU/H with 8.5 HSPF2 / 3.21 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- AHRI Estimated Annual Operating Costs:
- Cooling: $176.00
- Heating: $516.00
What's Included

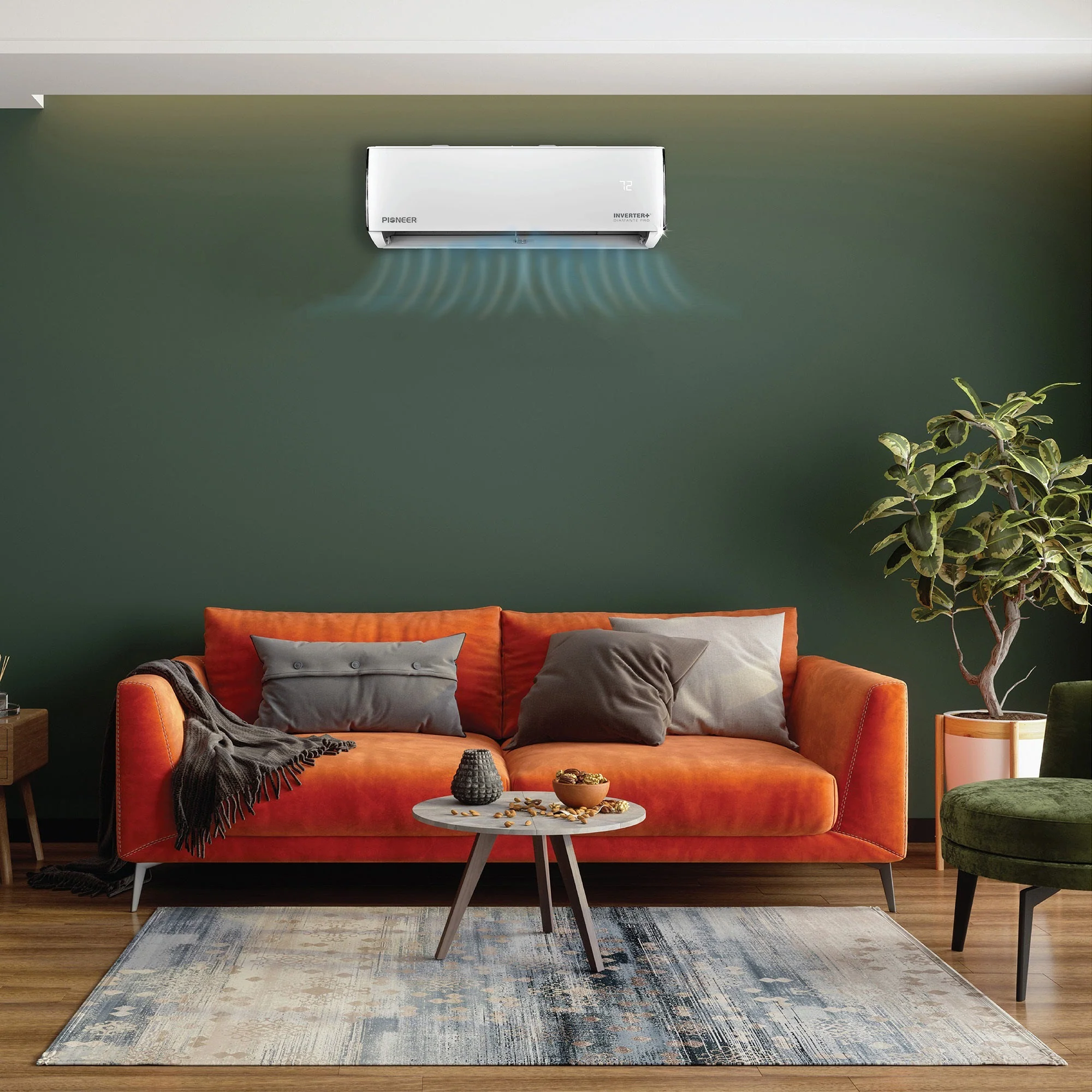

- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with wall holder and batteries)
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
- 5 years Warranty for Parts
- 5 years Warranty for Compressor
Features
[[FEATURES]]Technical Information
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 7,200~26,400 BTU/h
- Cooling SEER2: 19.0 BTU/W.h
- Cooling EER2: 10.0 BTU/W.h
- Heating Rated Capacity: 24,400 BTU/h
- Heating Capacity Range: 7320~26,840 BTU/h
- Heating HSPF2 (Region IV/V): 8.5 / 7.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.21 / 1.75 W/W
- Refrigerant Type: R410A/50.1 oz.
- Suitable Area: 550~1000 Sq.F
Indoor Unit Data
-
Part Number: WT024GLFI19HLE
- Air Flow (Hi/Med/Lo): 847 / 700 / 641 CFM
- Sound Level (Hi/Med/Lo): 48 / 43 / 38 dB(A)
- Net Dimensions (WDH): 46-5/8 x 10-1/4 x 13-3/8 Inches
- Carton Dimensions (WDH): 49-3/4 x 13-1/4 x 16-1/2 Inches
- Net / Gross Weight: 37.5 / 46.3 lbs
Outdoor Unit Data
- Part Number: YN024GLFI19RPE
- Breaker Needed: 20A (double-pole)
- Sound Level: 58.0 dB(A)
- Net Dimensions (WDH): 33-1/4 x 15 x 27-1/2 Inches
- Carton Dimensions (WDH): 37-3/4 x 17 x 29-1/2 Inches
- Net / Gross Weight: 95.9 / 107.3 lbs
