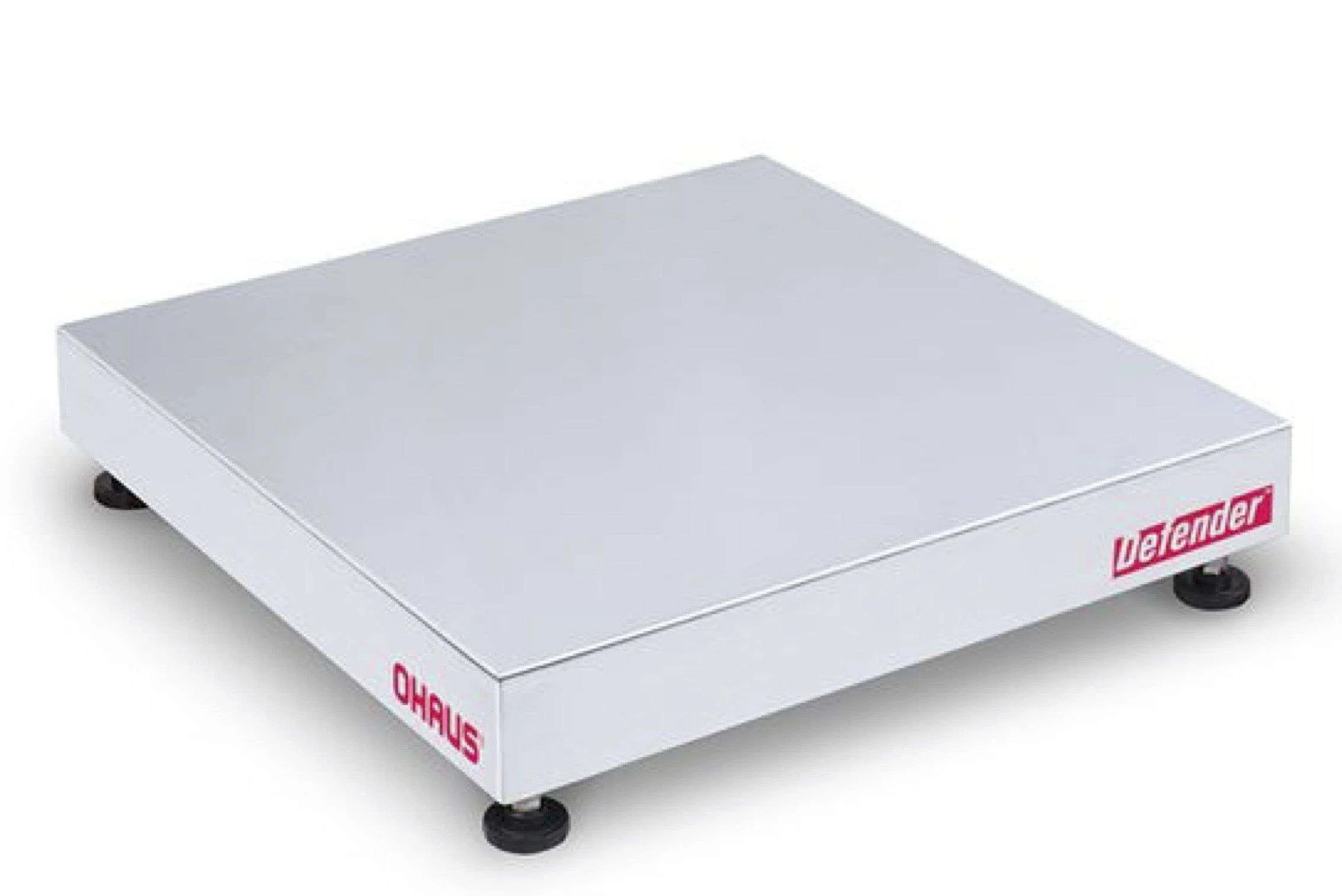

Ohaus D500WQV Defender 5000 Stainless Steel Base

Description:

The Ohaus D500WQV Defender 5000 Stainless Steel Base is a high-quality industrial weighing base designed for precision and durability. It features a 316 stainless steel top and bottom frame, hermetically sealed IP68/IP69K stainless steel loadcell, and a removable weighing platform with a 316 stainless steel frame. The base has a capacity of 5000 kg with a default readability of 1 kg. It also has a safe overload capacity of 150% of its capacity, ensuring reliable performance even under heavy loads.

Brand:

Ohaus

SKU:

D500WQV

Type:

Industrial Weighing Base

Features:

• 316 stainless steel construction for durability
• Hermetically sealed loadcell for protection against water and dust
• Removable weighing platform for easy cleaning
• Safe overload capacity of 150% of capacity

Technical Specifications:

• Capacity: 5000 kg
• Default Readability: 1 kg
• Linearity/Repeatability: ±2d
• Load Cell Capacity: 10 kg
• Load Cell Type: 350 Ohm, stainless steel, single point
• Load Cell Excitation: 3.3-15V DC/AC
• Load Cell Rated Output: 2mV/V
• Load Cell Protection: IP68/IP69K
• Base Dimensions (A x B x C x D): 250 x 250 x 106 x - mm
• Shipping Dimensions (L x W x H): 490 x 450 x 380 mm
• Approx. Net Weight: 5.8 kg
• Approx. Shipping Weight: 8 kg
