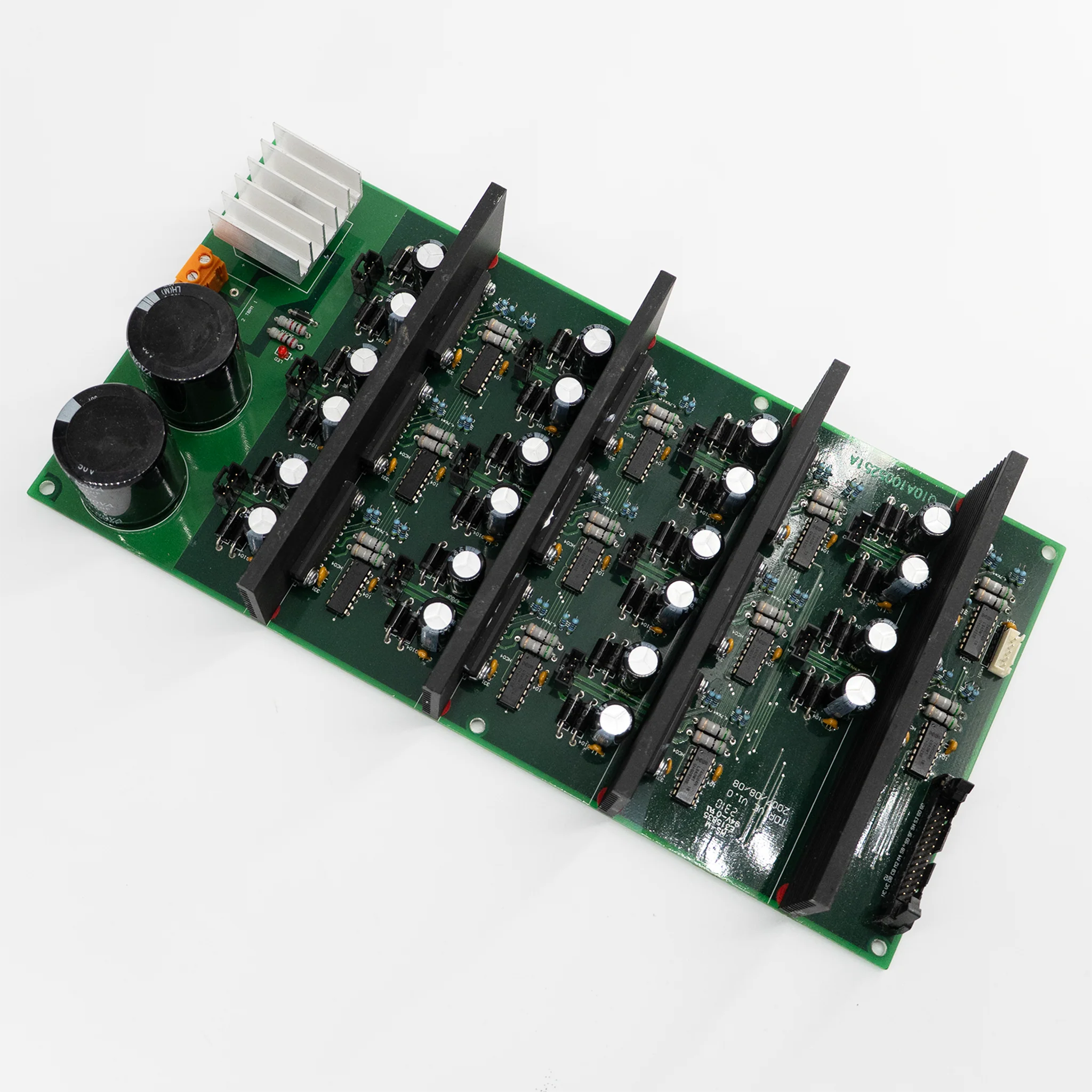

Mother Board PCB for E-PARALLAX-1013

Overview

The Mother Board PCB for E-PARALLAX-1013 is a robust, high-efficiency control board tailored for mid-sized multi-head combination weighers. It acts as the central hub for data acquisition, signal conditioning, and actuator command execution, ensuring precise synchronization across all weighing heads of the E-PARALLAX-1013 system. Its modular structure and reinforced power handling design make it ideal for demanding, continuous-use industrial packaging environments.

---

Key Features

• Dedicated Architecture: Optimized for the E-PARALLAX-1013 model.

• High-Density Channel Distribution: Multiple identical processing circuits arranged in parallel, allowing simultaneous signal processing across multiple channels.

• Enhanced Power Management: Includes large filtering capacitors and robust heat sinks for each power handling segment.

• Modular Design: Clearly segmented circuit banks with independent transistor arrays for efficient thermal distribution and fault isolation.

---

Hardware Highlights

• Power Section:

  • 2x Large Electrolytic Capacitors for ripple smoothing

  • Integrated heat sink and thermal pathways to dissipate operational heat

• Signal Processing Arrays:

  • Rows of capacitors, resistors, and ICs for each weighing channel

  • Parallel configuration for independent channel performance and scaling

• Connectivity:

  • Multi-pin industrial-grade header for board-to-board or controller interface

  • Orange terminal block for external power input

• Mechanical Layout:

  • Five major thermal zones with dedicated black anodized aluminum heat sinks

  • Through-hole mounting for secure panel integration
