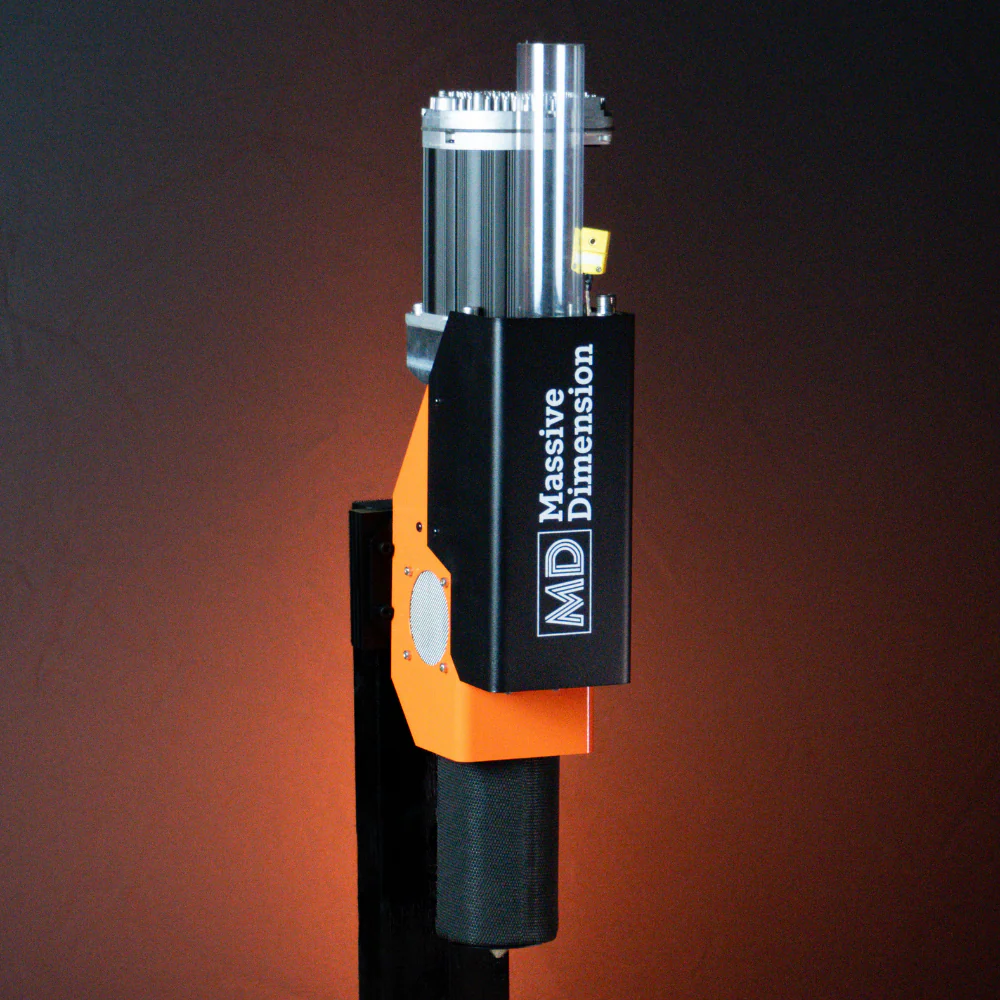

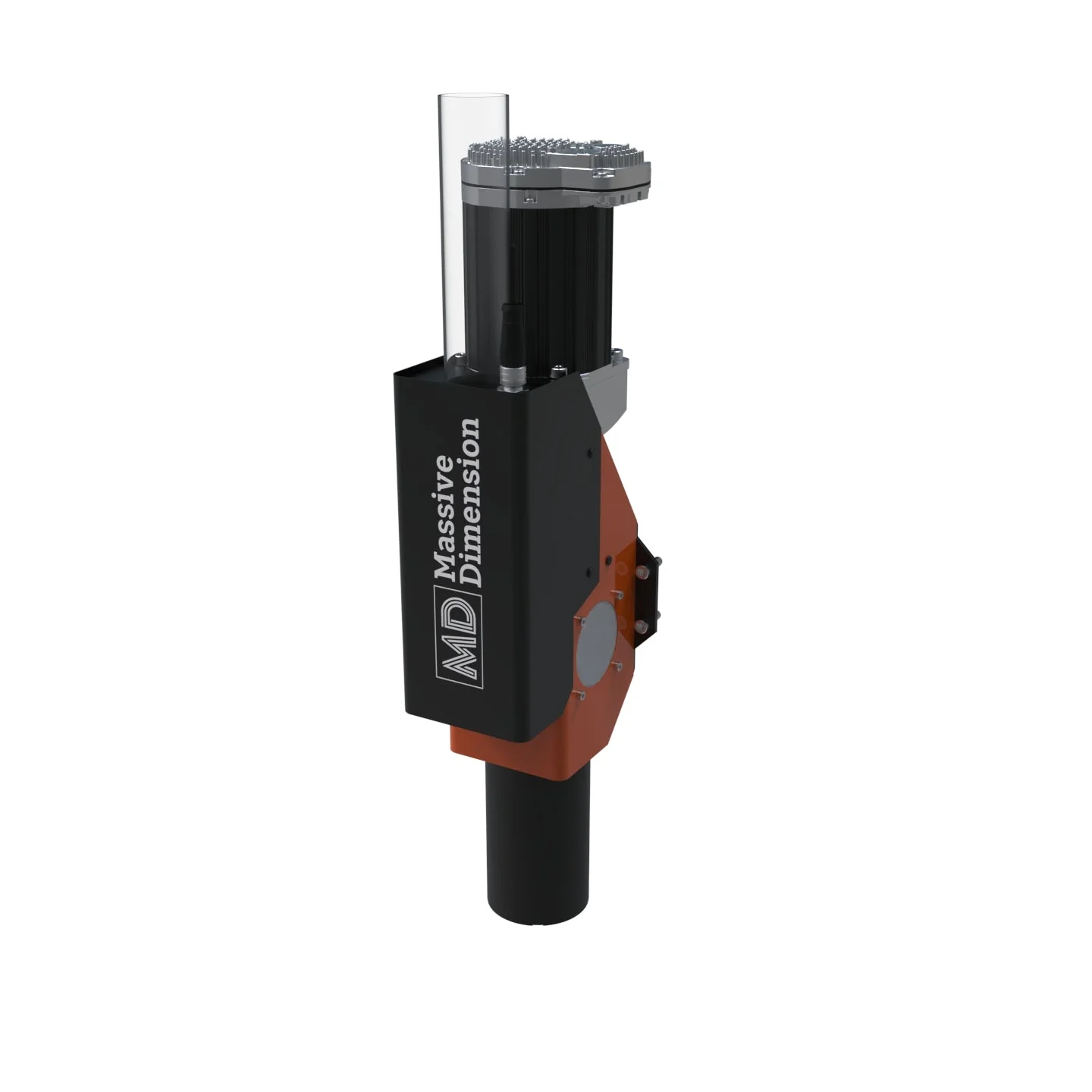

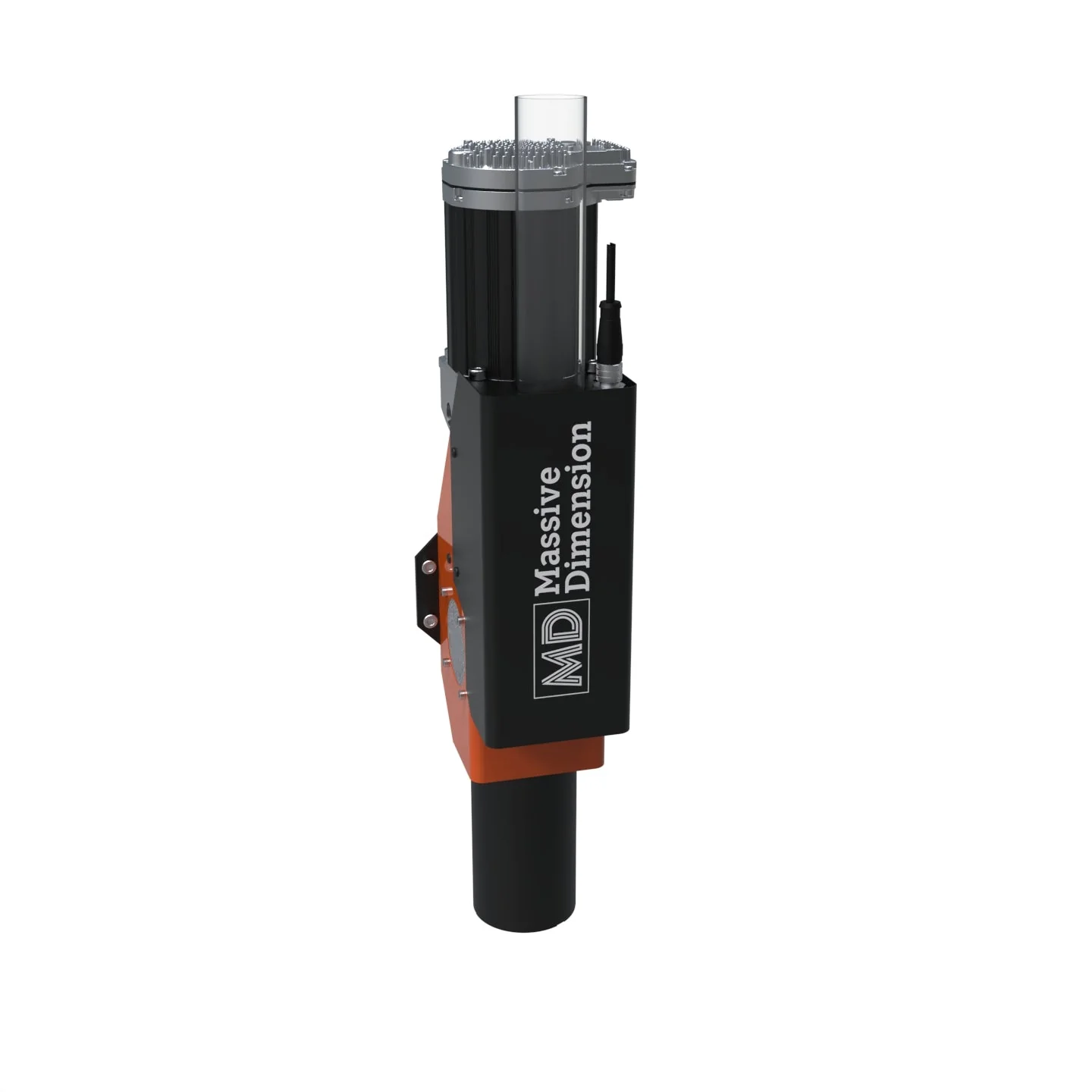

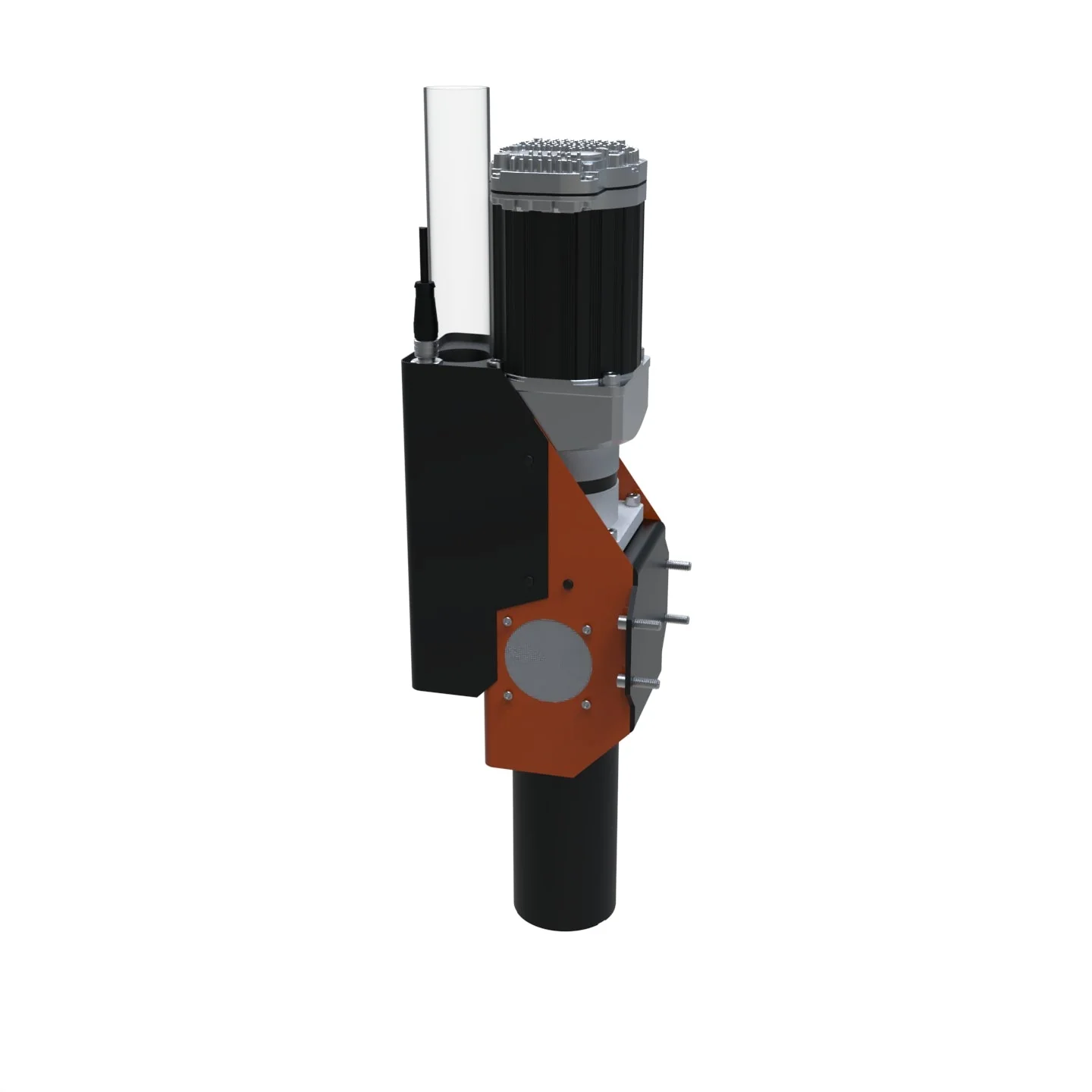

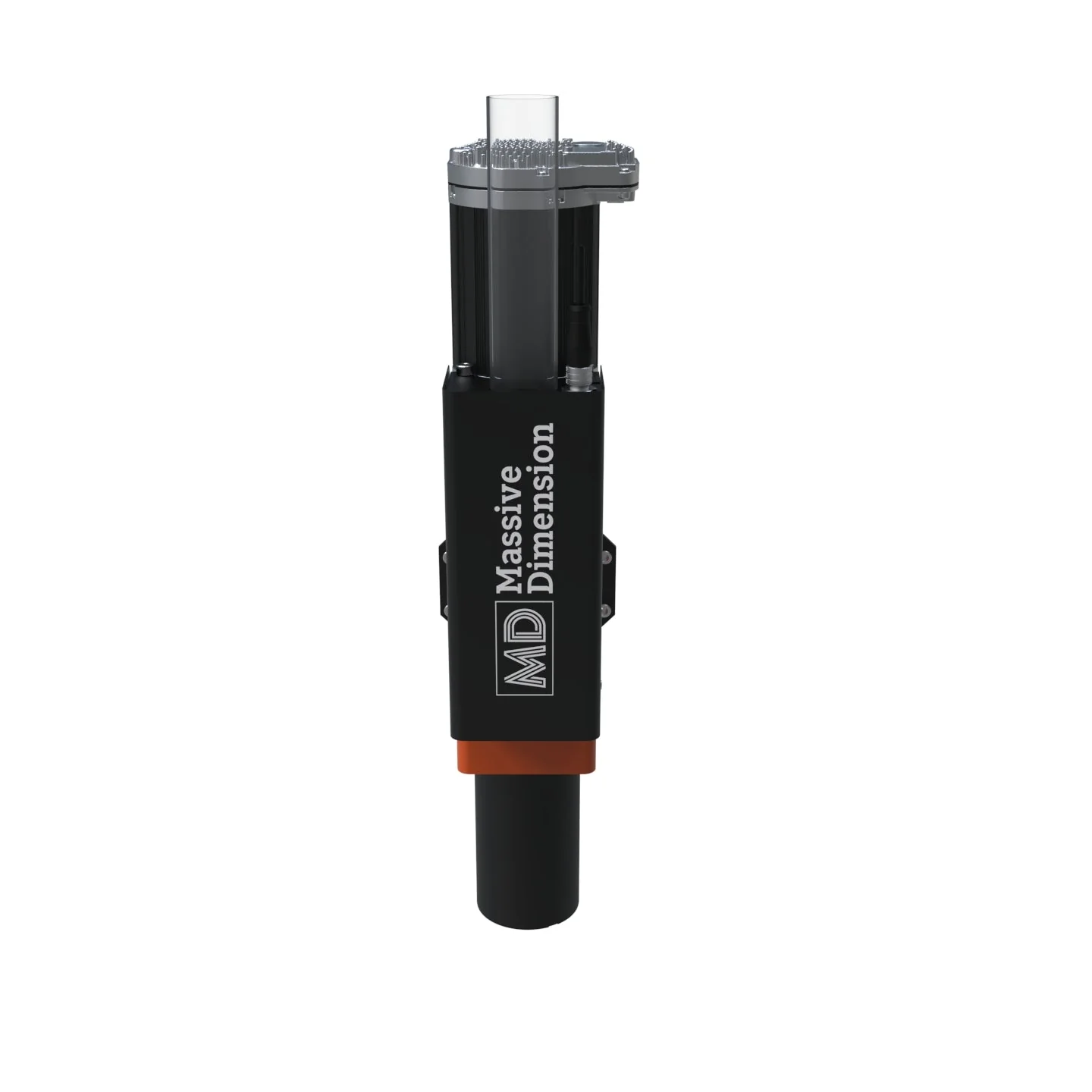

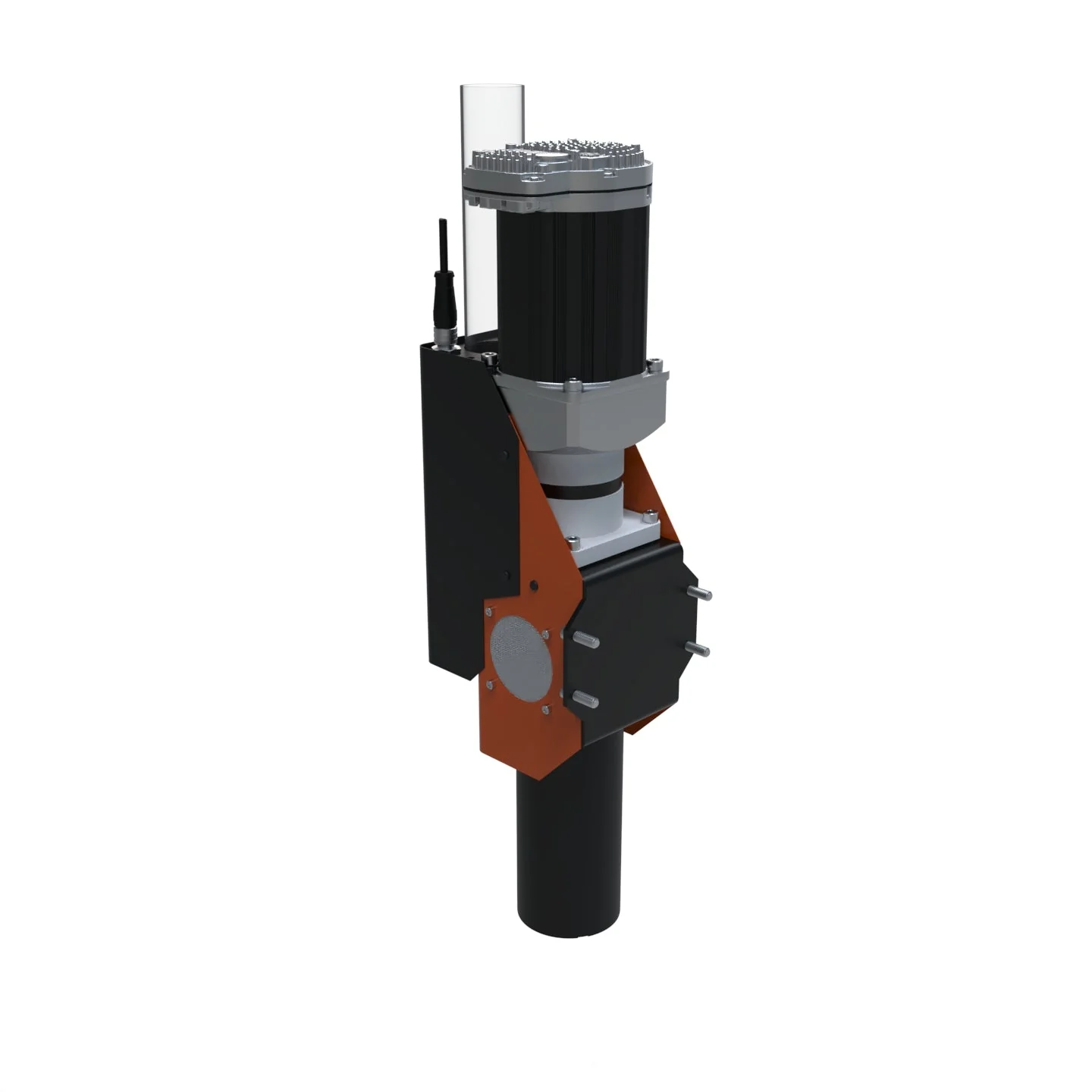

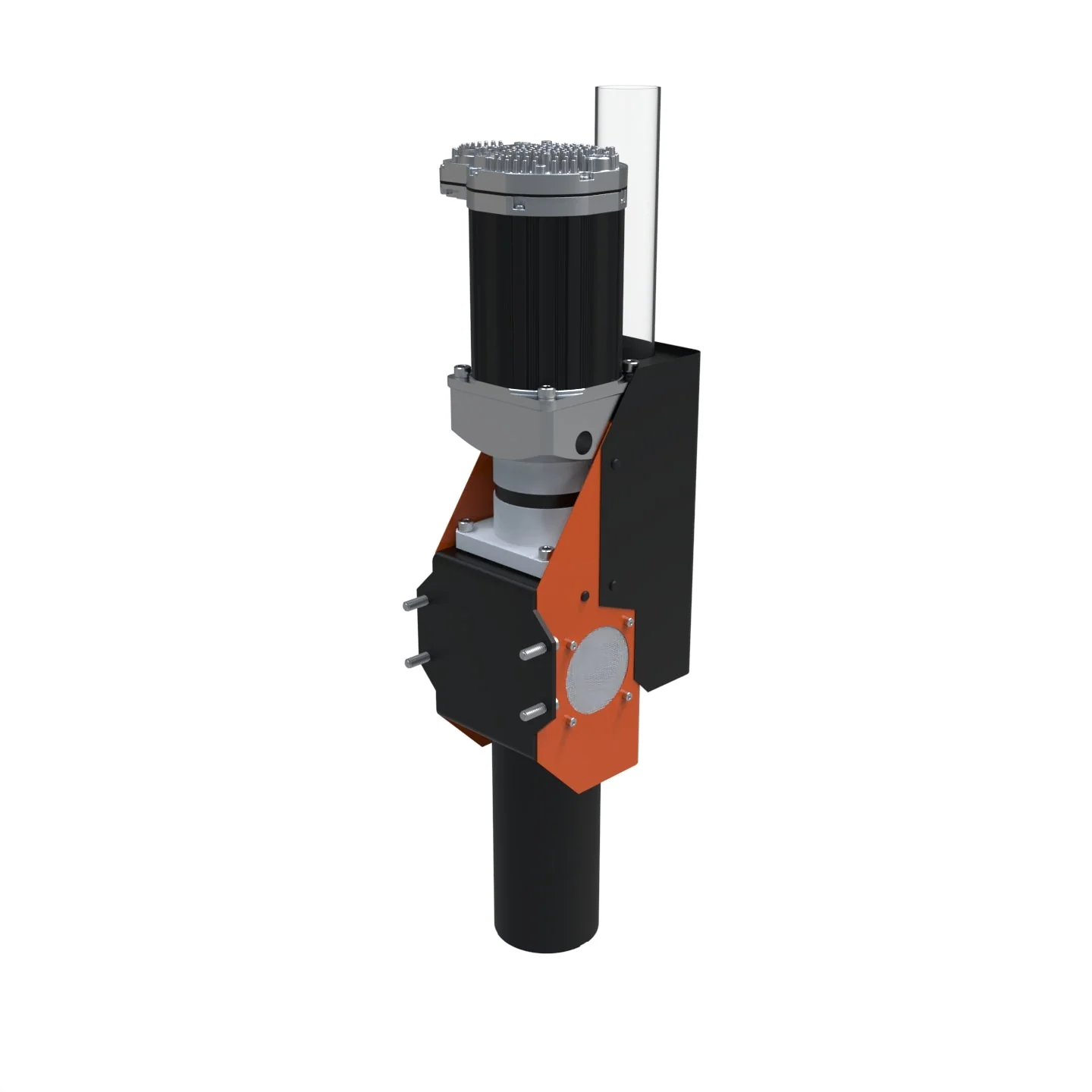

MDPH2 - Pellet Head Extruder
The MDPH2 is the original direct pellet-to-print large-format extruder by Massive Dimension, drawing on nearly a decade of experience engineering pellet-fed machines for filament production. After two years of production, though it has been superseded in size by our flagship MDPE10, the MDPH2 remains a stalwart, lightweight and economical option for those looking to break into the frontier of large-format additive manufacturing. Put to the test by consumers and industrial users alike, the design has been proven out as a reliable workhorse that can be carried by robust XYZ or SCARA systems as well as robotic arms. Click here to download the MDPH2 product overview.
Specifications
- Temperature Max: 450°C - 300 Watt Total Heating Power
- PID Temperature Controller
- High Performance, High-Pressure Screw.
- 1.3:1 Compression Ratio
- 9:1 L/D Ratio
- High Power Motor
- 2 pound per hour output - 4043D PLA Test
- Wide Range of Filled or Unfilled Materials - ABS, PLA, HIPS, TPU, TPE, PC, PS, and more
- Low Weight ~ 18lbs (8.39kg)
- Easy Mount
- 110VAC or 220VAC
What is in the box
- MDPH2 Pellet Head
- 2 Nozzles
- 10ft Power and Control Wire
- Motor Power and Control Wire
- Motor Driver
- Heater Relay
- IPC-5 Power Supply
What you have to setup
- Mounting MDPH2 Pellet Head to CNC
- Mount Motor Driver
- Mount Heater Relay
- Wire System
- Hopper Feed / Pellet Loading
- 24V DC Power Supply
Other Resources
- Overview Drawing
- CAD Model
- Power Supply Manual
- Wire Diagram
- Manual and Setup Guide
- Motor Configuration File
