[tab]
\nAUDIO AND VIDEO
\n| Transmitter: | \nINPUT PORTS: | \n1 × HDMI IN | \n
| \n | OUTPUT PORTS: | \n1 x Coax Out | \n
| Receiver: | \nINPUT PORTS: | \n1 x Coax Input | \n
| \n | OUTPUT PORTS: | \n1 x HDMI OUT | \n
| \n | \n | 1 x Coax Loop-Out | \n
Supported Coax Cables
\n| Coax Cable version: | \n75Ohm RG-6U | \n
COMPLIANCES
\n| HDMI Compliance | \nHDMI 1.3 | \n
| HDCP Compliance | \nHDCP 1.1 | \n
SUPPORTED CAT CABLES
\n| CAT5e, CAT6, CAT7: | \nWe recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance | \n
EXTENDING DISTANCE
\n| 1080p@60Hz: | \nFull HD up to 100M (RG-6U cables), HD up to 200M (RG-6U cables), SD up to 300M (RG-6U cables ) | \n
VIDEO OUTPUT
\n| Video Bandwidth: | \n225MHz/link (HDMI 1.3) | \n
| Video Resolutions: | \n[email protected]/24/25/29.97/30/50/59.94/60 | \n
| Color Space: | \nRGB,YCbCr 4:2:2,4:4:4 | \n
| Color Depth: | \n12 bit | \n
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
\n| CEC Function: | \nNo | \n
| ARC Function: | \nNo | \n
| USB KVM Function: | \nNo | \n
| PoC/PoE Function: | \nYes | \n
| IR Controller: | \nYes | \n
| Downscaler Function: | \nNo | \n
| Over Network/IP Function: | \nNo | \n
| HDBaseT Function: | \nNo | \n
| RS-232 Function: | \nNo | \n
LOOP-OUT/LOCAL PORT
\n| Has loop out port: | \nYes | \n
| Number of Loop out ports: | \n1 | \n
SWITCHES
\n| EDID Management: | \nYes | \n
| EQ Dip Switches: | \nNo | \n
| ARC: | \nNo | \n
AUDIO OUTPUT
\n| HDMI Audio Formats: | \nPCM 48KHz | \n
| SPDIF/Optical Audio Formats: | \nNo | \n
| L/R Audio Formats: | \nNo | \n
SIGNALS
\n| TMDS Signals: | \n3.3V | \n
| DDC Signals: | \n5V/P-P | \n

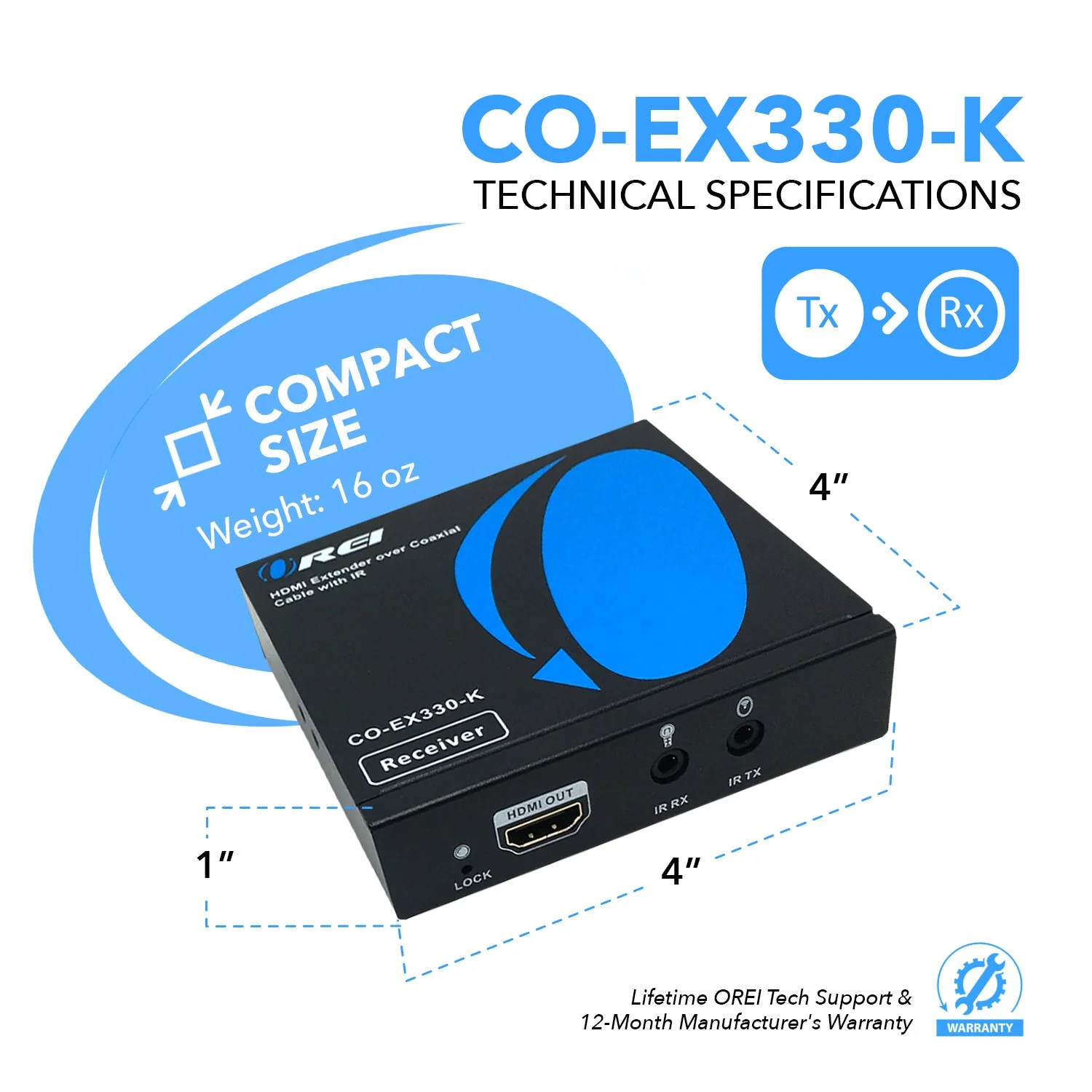

DIMENSIONS & WEIGHT
\n| Height: | \n25 mm | \n
| Width: | \n105 mm | \n
| Depth: | \n100 mm | \n
| Weight: | \n280 g | \n
PROTECTION
\n| Operation Temperature: | \n32~104 °F | \n
| Storage temperature: | \n-4 ~140 °F | \n
| Relative Humidity: | \n20~90 % RH (no condensation) | \n
| ESD Protection: | \n±8kV (air-gap discharge), ±4kV (contact discharge) | \n
| Electrostatic Protection of the whole Machine: | \nHuman body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) | \n
POWER
\n| Power Consumption (Max) | \nTransmitter: | \n2.3 watts | \n
| \n | Receiver: | \n2.2 watts | \n
| Power Supply: | \n5V1A DC | \n
PHYSICAL PROPERTIES
\n| Color: | \nBlack | \n
| Housing: | \nIron | \n
| Processing Technology: | \nMetal Plate | \n
| Finishing: | \nPowder Spraying Technology, Screen Printing | \n
PACKAGE CONTENTS
\n| 1 x HDMI Transmitter | \n
| 1 x HDMI Receiver | \n
| 1 × IR Blaster | \n
| 2 × IR Receiver | \n
| 2 x DC 5V In-Line Power Supply | \n
| 1 × User Manual | \n
WARRANTY
\n| 1 - Year Manufacturer's Warranty | \n
[/tab]
","image":["/images/wellbotshub.shop/images/product/hdmi-extender-balun-over-coaxial-upto-330-feet-1080p-60hz-over-75ohm-rg-6u-bi-directional-ir-cascadable-co-ex330-k-1.jpg","/images/wellbotshub.shop/images/product/hdmi-extender-balun-over-coaxial-upto-330-feet-1080p-60hz-over-75ohm-rg-6u-bi-directional-ir-cascadable-co-ex330-k-2.jpg","/images/wellbotshub.shop/images/product/hdmi-extender-balun-over-coaxial-upto-330-feet-1080p-60hz-over-75ohm-rg-6u-bi-directional-ir-cascadable-co-ex330-k-3.jpg","/images/wellbotshub.shop/images/product/hdmi-extender-balun-over-coaxial-upto-330-feet-1080p-60hz-over-75ohm-rg-6u-bi-directional-ir-cascadable-co-ex330-k-4.jpg","/images/wellbotshub.shop/images/product/hdmi-extender-balun-over-coaxial-upto-330-feet-1080p-60hz-over-75ohm-rg-6u-bi-directional-ir-cascadable-co-ex330-k-5.jpg","/images/wellbotshub.shop/images/product/hdmi-extender-balun-over-coaxial-upto-330-feet-1080p-60hz-over-75ohm-rg-6u-bi-directional-ir-cascadable-co-ex330-k-6.jpg","/images/wellbotshub.shop/images/product/hdmi-extender-balun-over-coaxial-upto-330-feet-1080p-60hz-over-75ohm-rg-6u-bi-directional-ir-cascadable-co-ex330-k-7.jpg","/images/wellbotshub.shop/images/product/hdmi-extender-balun-over-coaxial-upto-330-feet-1080p-60hz-over-75ohm-rg-6u-bi-directional-ir-cascadable-co-ex330-k-8.jpg","/images/wellbotshub.shop/images/product/hdmi-extender-balun-over-coaxial-upto-330-feet-1080p-60hz-over-75ohm-rg-6u-bi-directional-ir-cascadable-co-ex330-k-9.jpg","/images/wellbotshub.shop/images/product/hdmi-extender-balun-over-coaxial-upto-330-feet-1080p-60hz-over-75ohm-rg-6u-bi-directional-ir-cascadable-co-ex330-k-10.jpg"],"sku":"hdmi-extender-balun-over-coaxial-upto-330-feet-1080p-60hz-over-75ohm-rg-6u-bi-directional-ir-cascadable-co-ex330-k","brand":{"@type":"Brand","name":"Wellbots"},"offers":{"@type":"AggregateOffer","lowPrice":19.8,"highPrice":19.8,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://wellbotshub.shop/products/hdmi-extender-balun-over-coaxial-upto-330-feet-1080p-60hz-over-75ohm-rg-6u-bi-directional-ir-cascadable-co-ex330-k","offerCount":1}}
HDMI Extender Balun Over Coaxial Upto 330 Feet - 1080p@60Hz Over 75Ohm RG-6U, Bi-directional IR, Cascadable (CO-EX330-K)
OREI CO-EX330-K Extender Balun Over Coaxial Cable
- Flexible extension of high-bandwidth HDMI 1.3
- Performance of 75Ohm RG-6U Coax cable is reliable
- Audio and video are transmitted digitally over the 75Ohm RG-6U Coaxial cable with zero signal loss
- Single Link Range: 1080p/60, 12-bit color depth
- Compliant with HDMI 1.3, HDCP 1.1 standards
- Supports digital video formats in Deep Color Mode at up to 12bits/color
- Supports PCM 48KHz audio
- Supports Cascade function in Transmitter and Receiver
- Easy to build a network system by installer
- Lip-Sync Pass Through
- Supports Bi-directional IR
The HDMI Over Single Coaxial cable extender sends HDMI signals over just one 75Ohm Coaxial cable up to 330 feet. This HDMI Over Single Coax Extender supports HDMI 1.3 and HDCP 1.1 with features such as Deep Color and 1080p. By using standard and widely available 75Ohm RG-6U cables, the HDMI Over Single Coax Extender makes HDMI signal extensions to be easier than heavy and expensive copper cable and more robust than optical fiber.
The Extender includes two units: transmitter and receiver. The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one coaxial cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals. This Extender offers the most convenient solution for HDMI extension over a single coaxial cable with long distance capability, and is the perfect solution for any application.
[shortdes]
- Supports Cascade function
- Single Link Range: 1080p/60, 12-bit color depth
- Supports Bi-directional IR
[/shortdes]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you can implement the daisy chain method.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
[tab]
AUDIO AND VIDEO
| Transmitter: | INPUT PORTS: | 1 × HDMI IN |
| OUTPUT PORTS: | 1 x Coax Out | |
| Receiver: | INPUT PORTS: | 1 x Coax Input |
| OUTPUT PORTS: | 1 x HDMI OUT | |
| 1 x Coax Loop-Out |
Supported Coax Cables
| Coax Cable version: | 75Ohm RG-6U |
COMPLIANCES
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.1 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 1080p@60Hz: | Full HD up to 100M (RG-6U cables), HD up to 200M (RG-6U cables), SD up to 300M (RG-6U cables ) |
VIDEO OUTPUT
| Video Bandwidth: | 225MHz/link (HDMI 1.3) |
| Video Resolutions: | [email protected]/24/25/29.97/30/50/59.94/60 |
| Color Space: | RGB,YCbCr 4:2:2,4:4:4 |
| Color Depth: | 12 bit |
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
| CEC Function: | No |
| ARC Function: | No |
| USB KVM Function: | No |
| PoC/PoE Function: | Yes |
| IR Controller: | Yes |
| Downscaler Function: | No |
| Over Network/IP Function: | No |
| HDBaseT Function: | No |
| RS-232 Function: | No |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
SWITCHES
| EDID Management: | Yes |
| EQ Dip Switches: | No |
| ARC: | No |
AUDIO OUTPUT
| HDMI Audio Formats: | PCM 48KHz |
| SPDIF/Optical Audio Formats: | No |
| L/R Audio Formats: | No |
SIGNALS
| TMDS Signals: | 3.3V |
| DDC Signals: | 5V/P-P |
DIMENSIONS & WEIGHT
| Height: | 25 mm |
| Width: | 105 mm |
| Depth: | 100 mm |
| Weight: | 280 g |
PROTECTION
| Operation Temperature: | 32~104 °F |
| Storage temperature: | -4 ~140 °F |
| Relative Humidity: | 20~90 % RH (no condensation) |
| ESD Protection: | ±8kV (air-gap discharge), ±4kV (contact discharge) |
| Electrostatic Protection of the whole Machine: | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
POWER
| Power Consumption (Max) | Transmitter: | 2.3 watts |
| Receiver: | 2.2 watts | |
| Power Supply: | 5V1A DC |
PHYSICAL PROPERTIES
| Color: | Black |
| Housing: | Iron |
| Processing Technology: | Metal Plate |
| Finishing: | Powder Spraying Technology, Screen Printing |
PACKAGE CONTENTS
| 1 x HDMI Transmitter |
| 1 x HDMI Receiver |
| 1 × IR Blaster |
| 2 × IR Receiver |
| 2 x DC 5V In-Line Power Supply |
| 1 × User Manual |
WARRANTY
| 1 - Year Manufacturer's Warranty |
[/tab]
Original: $65.99
-70%$65.99
$19.80Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
OREI CO-EX330-K Extender Balun Over Coaxial Cable
- Flexible extension of high-bandwidth HDMI 1.3
- Performance of 75Ohm RG-6U Coax cable is reliable
- Audio and video are transmitted digitally over the 75Ohm RG-6U Coaxial cable with zero signal loss
- Single Link Range: 1080p/60, 12-bit color depth
- Compliant with HDMI 1.3, HDCP 1.1 standards
- Supports digital video formats in Deep Color Mode at up to 12bits/color
- Supports PCM 48KHz audio
- Supports Cascade function in Transmitter and Receiver
- Easy to build a network system by installer
- Lip-Sync Pass Through
- Supports Bi-directional IR
The HDMI Over Single Coaxial cable extender sends HDMI signals over just one 75Ohm Coaxial cable up to 330 feet. This HDMI Over Single Coax Extender supports HDMI 1.3 and HDCP 1.1 with features such as Deep Color and 1080p. By using standard and widely available 75Ohm RG-6U cables, the HDMI Over Single Coax Extender makes HDMI signal extensions to be easier than heavy and expensive copper cable and more robust than optical fiber.
The Extender includes two units: transmitter and receiver. The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one coaxial cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals. This Extender offers the most convenient solution for HDMI extension over a single coaxial cable with long distance capability, and is the perfect solution for any application.
[shortdes]
- Supports Cascade function
- Single Link Range: 1080p/60, 12-bit color depth
- Supports Bi-directional IR
[/shortdes]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you can implement the daisy chain method.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
