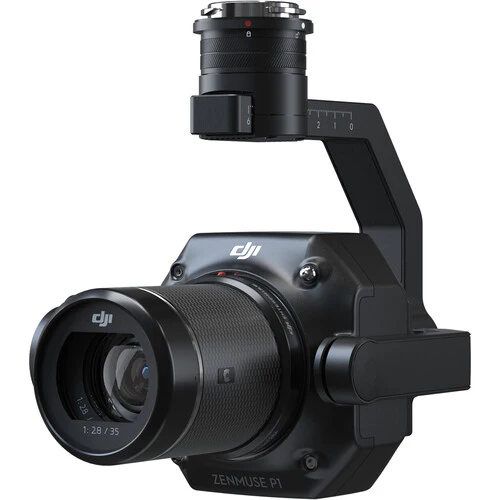

DJI Zenmuse P1

DJI Zenmuse P1

Key Features
  • For DJI Matrice 300 RTK
  • For Aerial Surveying & 2D/3D Mapping
  • 45MP Full-Frame Sensor
  • Smart Oblique Capture
  • TimeSync 2.0 for Microsecond Sync
  • < 2" Accuracy Without a GCP
  • Real-Time 0.7-Second per Image Capture
  • Four Different Mission Modes
  • Supports Lenses with DJI DL Mounts

DJI Zenmuse P1 Overview


Accurate aerial surveying and true-to-life 2D/3D mapping are combined within the Zenmuse P1 Gimbal for Matrice 300 RTK from DJI. Extremely accurate topographical mapping and site recreation are extremely useful to a host of industries and professions, and the Zenmuse P1 can capture them with speed and precision. The 45MP full-frame sensor can achieve real-time position and orientation data with 1.2" horizontal and 2" vertical accuracy without the need for a GCP, taking low-noise images at a blistering speed of 0.7 seconds per image. For realistic structure recreation, the Zenmuse P1 supports Smart Oblique Capture, rotating automatically at different angles as needed. All of this imaging is kept in sync with the rest of your drone using DJI's TimeSync 2.0 technology.


TimeSync 2.0
Precise measurements are essential for aerial mapping, which is why DJI developed TimeSync 2.0, which synchronizes across the camera, flight controller, gimbal, and RTK module at the microsecond level.

Smart Oblique Capture
For detailed 2D and 3D model creation, Smart Oblique Capture can be employed, where the gimbal automatically rotates to take images at the different angles needed to capture a structure. For more efficient post-processing (by 20 to 50%), only photos essential to reconstruction are taken at the edge of the flight area.

Smart Data Management
  • Mission result files are automatically associated with the Mission name and time
  • Centralized storage location for photos, GNSS data, and TimeStamps.MRK files
  • Image metadata contains the camera's parameters and RTK status



Mission Modes
  • 2D Orthomosaic: For medium to large-area operations, generate orthomosaics without GCPs (Ground Control Points)
  • 3D Oblique: Oblique images from multiple angles are easily acquired for professions that require centimeter-level detail, such as urban planners
  • Detailed Modeling: From a safe distance, capture and recreate vertical and slated surfaces with fine texture and detail
  • Real-time Mapping: Using the DJI Terra app, you can gather geographic information in real time



Fieldwork Report
Verify data quality right after a flight by checking the position data and number of images acquired, the RTK status, and the positioning accuracy.

Additional Features
  • Supports 24mm, 35mm, and 50mm lenses with DJI DL mounts
  • Global mechanical shutter with 1/2000 second speed

Items Included

  • DJI Zenmuse P1 Gimbal for Matrice 300 RTK



DJI Zenmuse P1 Specs

General
Compatibility
DJI Matrice 300 RTK
Wireless
Mobile App Compatible
No
Power
Power Source
Proprietary Interface
Power Consumption
20 W
Physical
Mounting
1x DJI SKYPORT
Color
Black
Operating Conditions
-4 to 122°F / -20 to 50°C
Storage Conditions
-4 to 140°F / -20 to 60°C
Dimensions
7.8 x 6.5 x 5.1" / 198 x 166 x 129 mm
Weight
1.8 lb / 800 g



Designed for use with:

  • All Drones

    • DJI MATRICE 300 RTK
    • DJI Matrice 300
