BougeRV Li 20A PWM Solar Charge Controller 12V 24V

BougeRV Li 20A PWM Solar Charge Controller 12V 24V

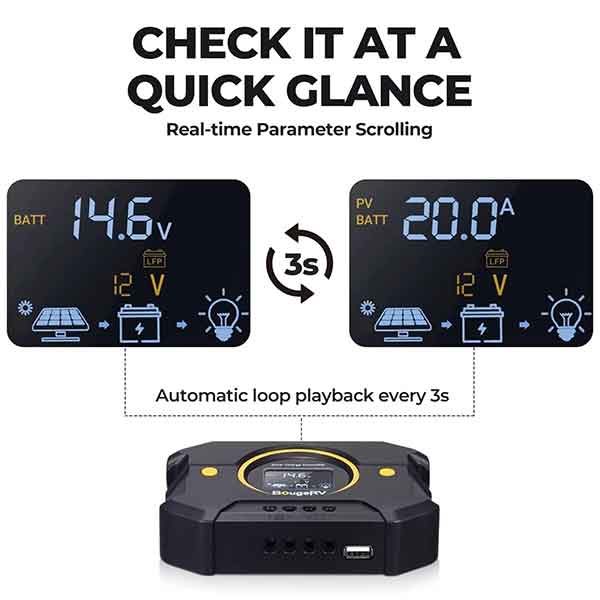

Regulate your solar charging with BougeRV guaranteed Li 20A PWM Solar Charge Controller. Designed for 12V / 24V lithium battery it protects the battery from overcharging, overheating and other power related issues. An intelligent 20A regulator, it cycles the PV input current and battery voltage every 3 second with real-time values to prevent any kind of damage to the equipment.

With user friendly buttons, clear read display and a USB port for easy charge, the 20A Solar Charge Controller is a must have for your solar system.

Specifications:

System Voltage: 12V/24V

Maximum PV Input Voltage: <55V

Maximum PV Input Power: 300W/12V; 600W/24V

Rated Current: 20A

Screen Type: Black & White

Backlight Display Time: 15sec off without operation

Working Temperature: -31oF ~ 113oF

Protection Level: IP32

Dimensions: 5.51 x 3.74 x 1.27 in

Screen Dimensions: 1.57 x 1.18 in

Net Weight: 0.4 lb

Drill Hole Size: 0.12 x 0.07 in

What's in the Box:

1 x Li 20Amp PWM Solar Charge Controller
