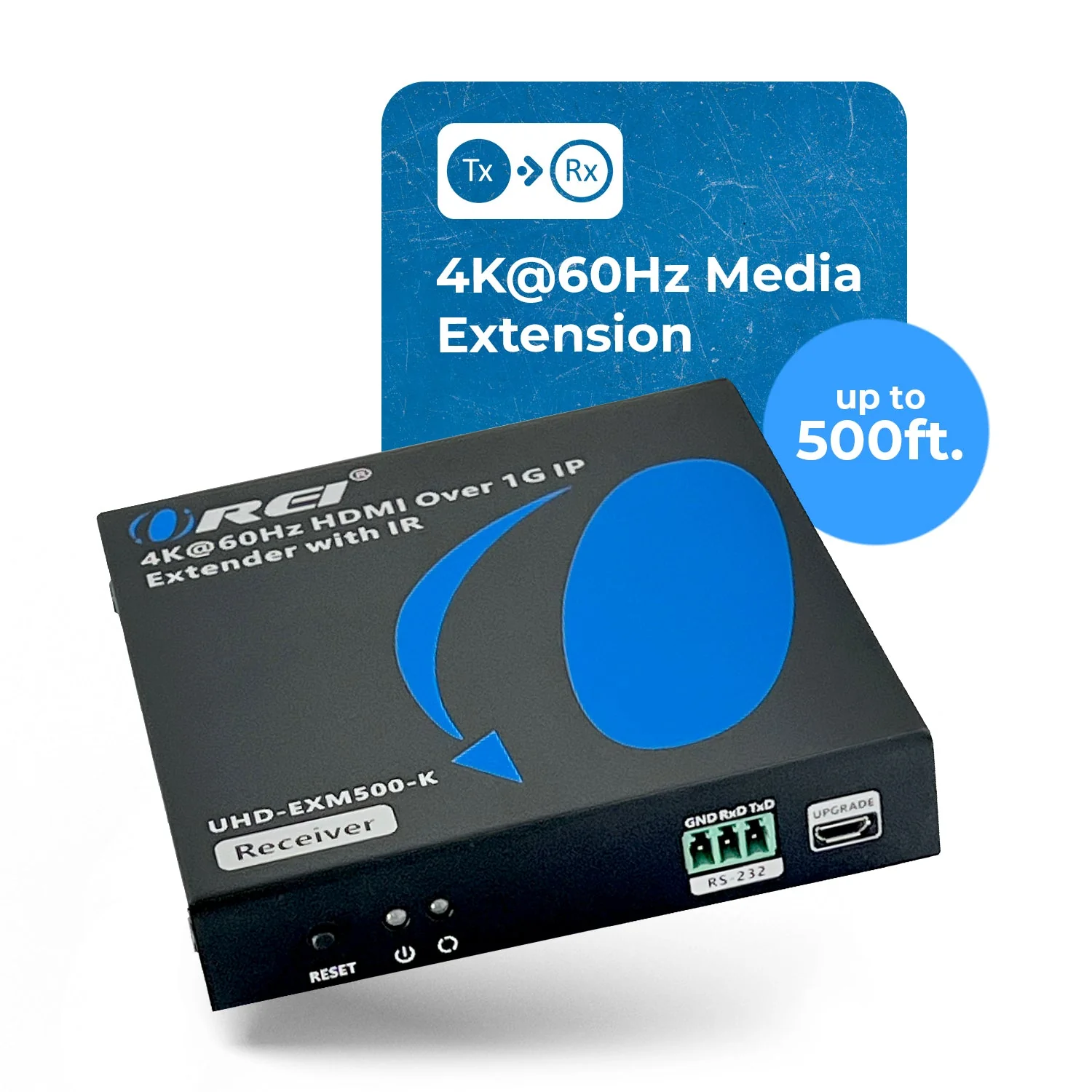

4K HDMI Extender Over Cat6/7 Cable Upto 500 Ft - - IR & RS-232 (UHD-EXM500-K)

OREI UHD-EXM500-K: 4K HDMI Extender UPTO 500 FT

• Features ipcolor STREAM technology for high-definition audio/video transmission with low-latency.
• Video resolutions up to 4K@60Hz.
• Compatible with Cat5/5e/6 or above network cables. For extending signal up to 120M(500Feet) use CAT6 Round -Shielded cable.

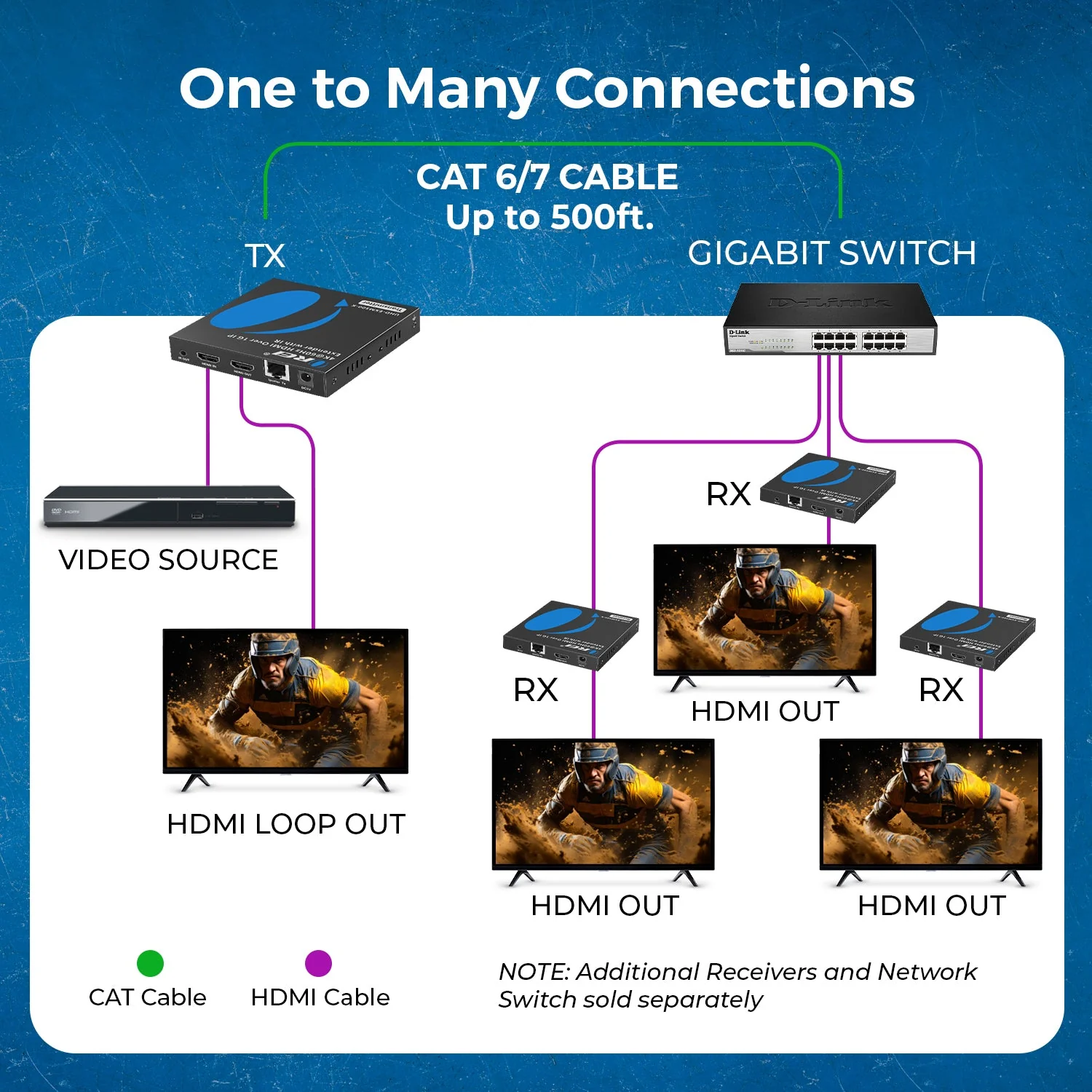

• Supports one-to-one or one-to-many connections through a network switch.
• Additional Receivers can be added to the setup via a network switch or through a network switch cascade as well.
• Features HDMI output on the Transmitter to connect a display at the source.
• One-way IR transmission (20~60kHz) from the Receiver to the Transmitter: enabling source device control from the Receiver end.
• The device also supports control through RS-232.
• Micro USB ports on the device can be used for Firmware upgrades.
• Lightning protection, surge protection, ESD protection

The UHD-EXM500-K consists of a Transmitter and Receiver allowing you to extend HDMI audio/video signal to another location up to 500 Feet away using a CAT6/7 cable. The extender features ipcolor STREAM technology for high-definition and low-latency transmission.

The device supports video resolutions up to 4K@60Hz. It features an HDMI output on the Transmitter to connect a display at the source. The extender can be connected one-toone through a CAT cable or one-to-many via a network switch.

It also work with multiple switch cascades. Features One-way IR transmission from Receiver to the Transmitter; enabling control of the source device from the Receiver end. The device also supports control through RS-232.



[shortdes]

• Video resolutions up to 4K@60Hz
• Compliance: HDMI 2.0 - HDCP 1.4/2.2
• One-way IR control
