48Gbps 8K Audio Extractor with S/PDIF and L/R output, Dolby Vision (BKA-1)
OREI BKA-1: 48Gbps 8K Audio Extractor with S/PDIF and L/R output, Dolby Vision
Key Features:
- HDMI 2.1 and HDCP 2.3 compliant.
- 48Gbps FRL and 18Gbps TMDS video bandwidth.
- Video resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit.
- VRR, ALLM, QMS, QFT, SBTM support.
- HDR/10/10+, Dolby Vision, and HLG pass-through.
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through from HDMI.
- Supports ARC Audio Extraction from an ARC/eARC TV.
- Features CEC control between HDMI Input and Output.
- Advanced EDID management.
- Compact design for easy and flexible installation

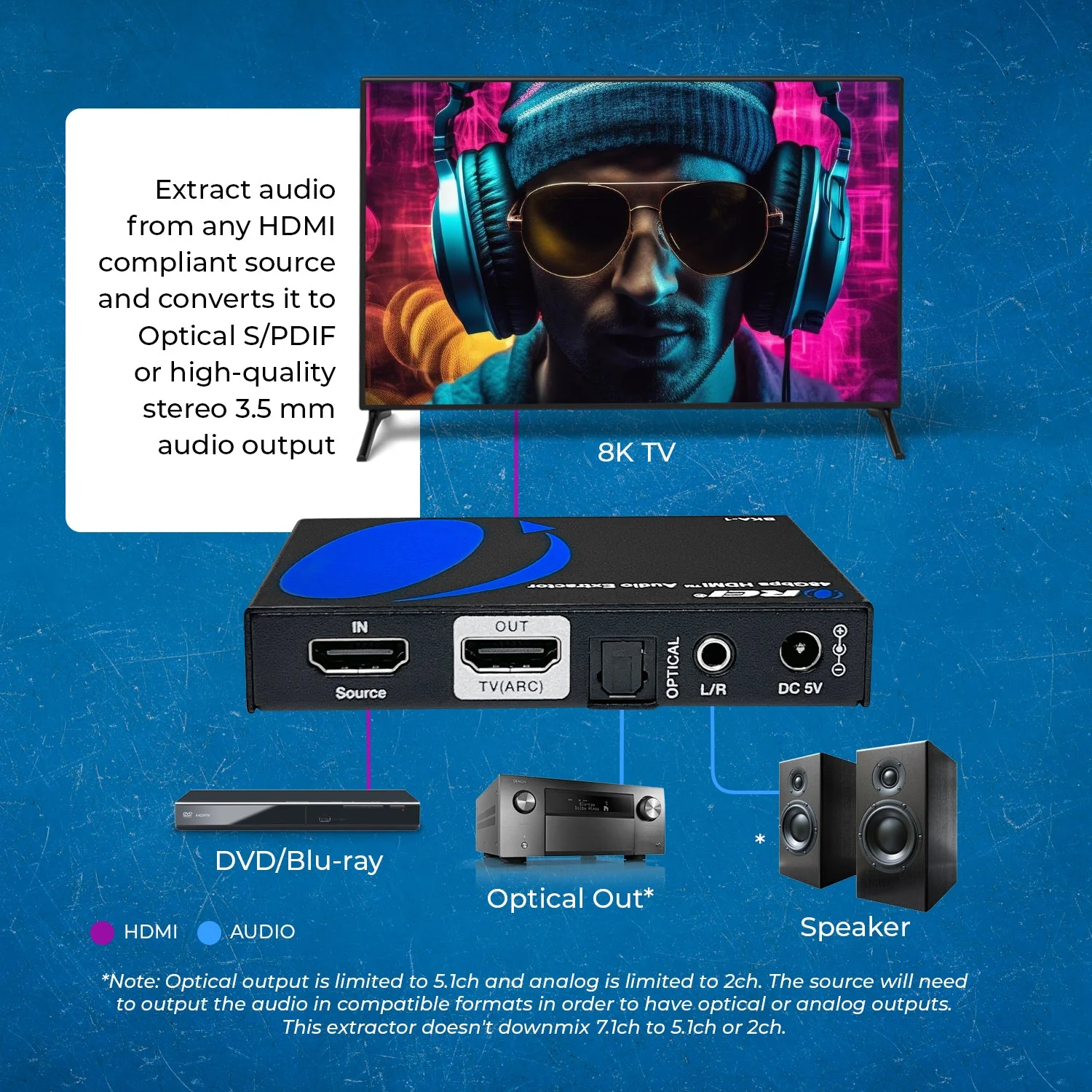

The BKA-1 extracts audio signals from HDMI sources or ARC-compatible TVs to stereo and digital audio outputs. It meets HDMI 2.1 and HDCP 2.3 standards, ensuring seamless compatibility with modern devices. A high video bandwidth supporting 48Gbps FRL and 18Gbps TMDS. Enjoy stunning visuals with support for video resolutions up to 8K@60Hz 4:2:0 12bit and 4K@120Hz 4:4:4 12bit. It incorporates HDMI 2.1 protocols like VRR, ALLM, QMS, QFT, and SBTM for enhanced functionality. Experience vivid HDR formats like HDR10, HDR10+, Dolby Vision, and HLG pass-through. Immerse yourself in rich audio with support for LPCM 7.1CH, Dolby TrueHD, DTS-HD Master formats. Additionally, it allows for flexible audio connectivity by extracting HDMI input audio or TV ARC audio to S/PDIF and L/R audio outputs.
[shortdes]
-
Audio extraction through S/PDIF and L/R audio output
-
Video resolutions up to 8K@60Hz, 4K@120Hz
-
ARC/eARC support for TV
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
|
|
1 × L/R [3.5mm Stereo mini-jack] | |
| 1 × OPTICAL [S/PDIF, female] | ||
| CONTROL: | 1 × SERVICE [USB-C, Update port] |
PACKAGE CONTENTS
| 1x BKA-1 |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
VIDEO OUTPUT
| Video Bandwidth: | 48Gbps FRL and 18Gbps TMDS |
| Video Resolutions: |
Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, 4K@60Hz, 2K@120Hz, 2K@60Hz
|
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | Yes |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-HD Master Audio, DSD & DTS:X
|
| OPTICAL Audio Formats | PCM 2CH, Dolby, DTS 5.1CH |
| 3.5mm Analog Audio Formats: | PCM 2CH |
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 2.5W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
DIMENSIONS & WEIGHT
| Length: | 95mm / 3.74in | |
| Width: | 68mm / 2.68in | |
| Height: | 18mm / 0.71in | |
| Weight: | 178g / 6.28oz |
PROPERTIES
| Color: | Black |
| Housing: | Plastic + Metal (Aluminum) |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
